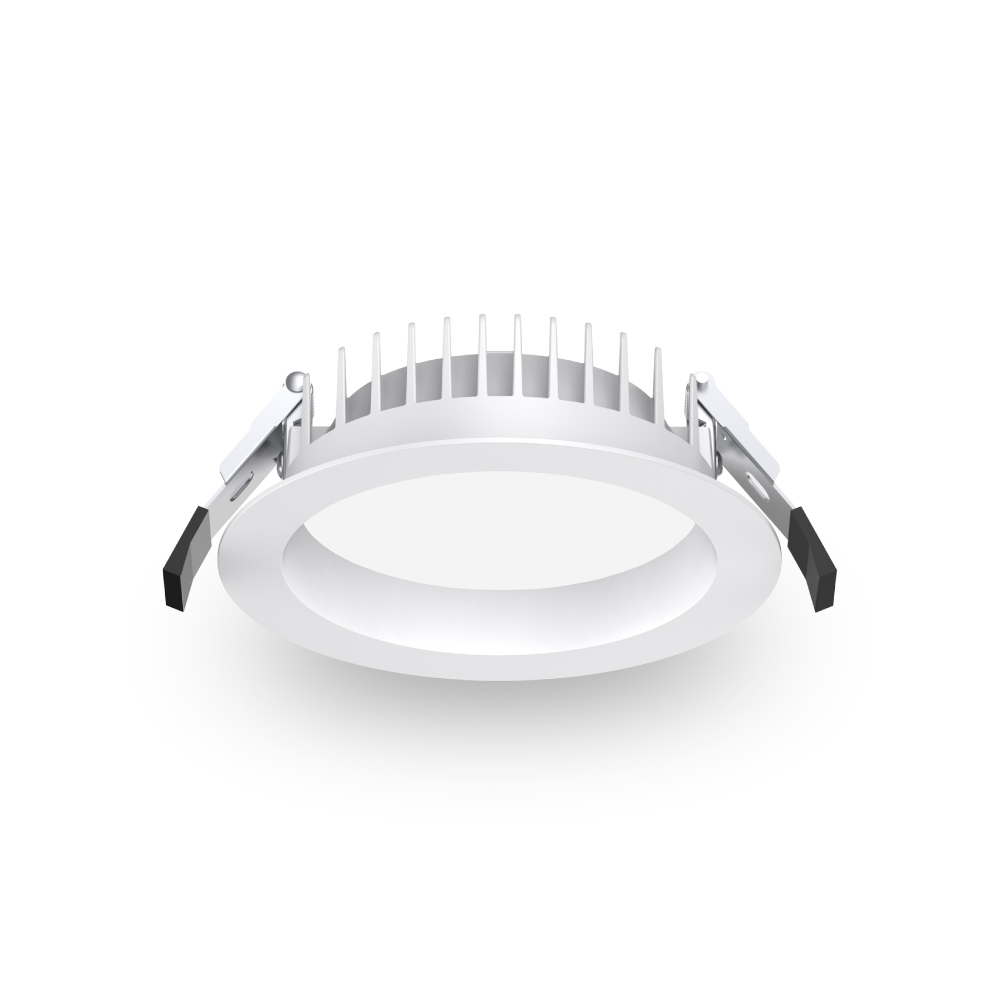

18W LED Downlight | Dimmable Driver | Tri-CCT Color Temperature | IP54 Rated | by atom
The 18W LED downlight with a dimmable driver offers versatile Tri-CCT color temperature options (3000K, 4000K, 5700K) for customizable lighting. With an IP54 rating, it's perfect for both residential and commercial recessed ceiling installations, ensuring durability and moisture resistance. Enjoy energy efficiency with a high system efficiency of up to 123 lm/W and a long LED lifetime exceeding 54,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Downlight, Dimmable LED Downlight, Recessed LED Ceiling Light, Adjustable Colour Temperature Downlight
Technical Specifications
- Power Wattage: 18W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K, 4000K, 5700K (Tri-CCT)
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: 450 mA
- Driver Type: Dimmable (Phase cut), constant current
- Driver Included: Yes
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Operating Temperature Range: -20 to 40 °C
- Switch Type: Inline
- Wiring: Re-wireable flex & plug (2 pin), 600 mm lead
- LED Lifetime: >54,000 hours (TM-21 report based)
- Macadam Steps: 5-step MacAdam ellipse
- Dimensions (H x L x W): 70mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Tri-CCT (3000K, 4000K, 5700K) selectable colour temperature
- Dimmable with phase cut driver
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- High system efficiency up to 123 lm/W
- Fixed adjustability
- Powdercoated white aluminium body with PMMA diffuser
- Long LED lifetime greater than 54,000 hours
- 5-step MacAdam ellipse for consistent colour quality
- Beam angle of 90°
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting
- Commercial lighting
- Recessed ceiling installations
- Indoor ambient and task lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Particular Requirements for Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable lighting levels
- IP54 rating extends product life by protecting against dust and moisture
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 18W LED Downlight with dimmable driver in white is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
