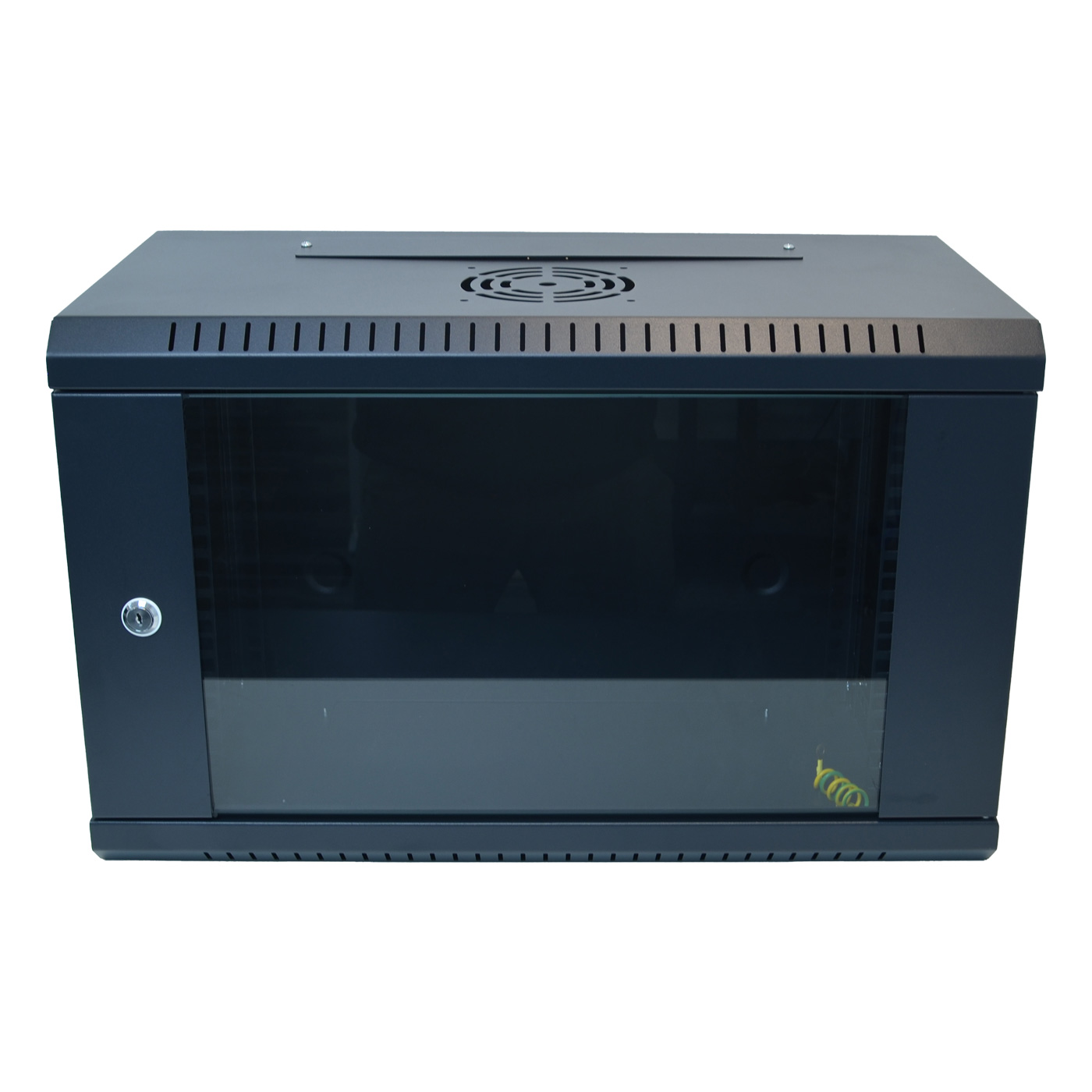

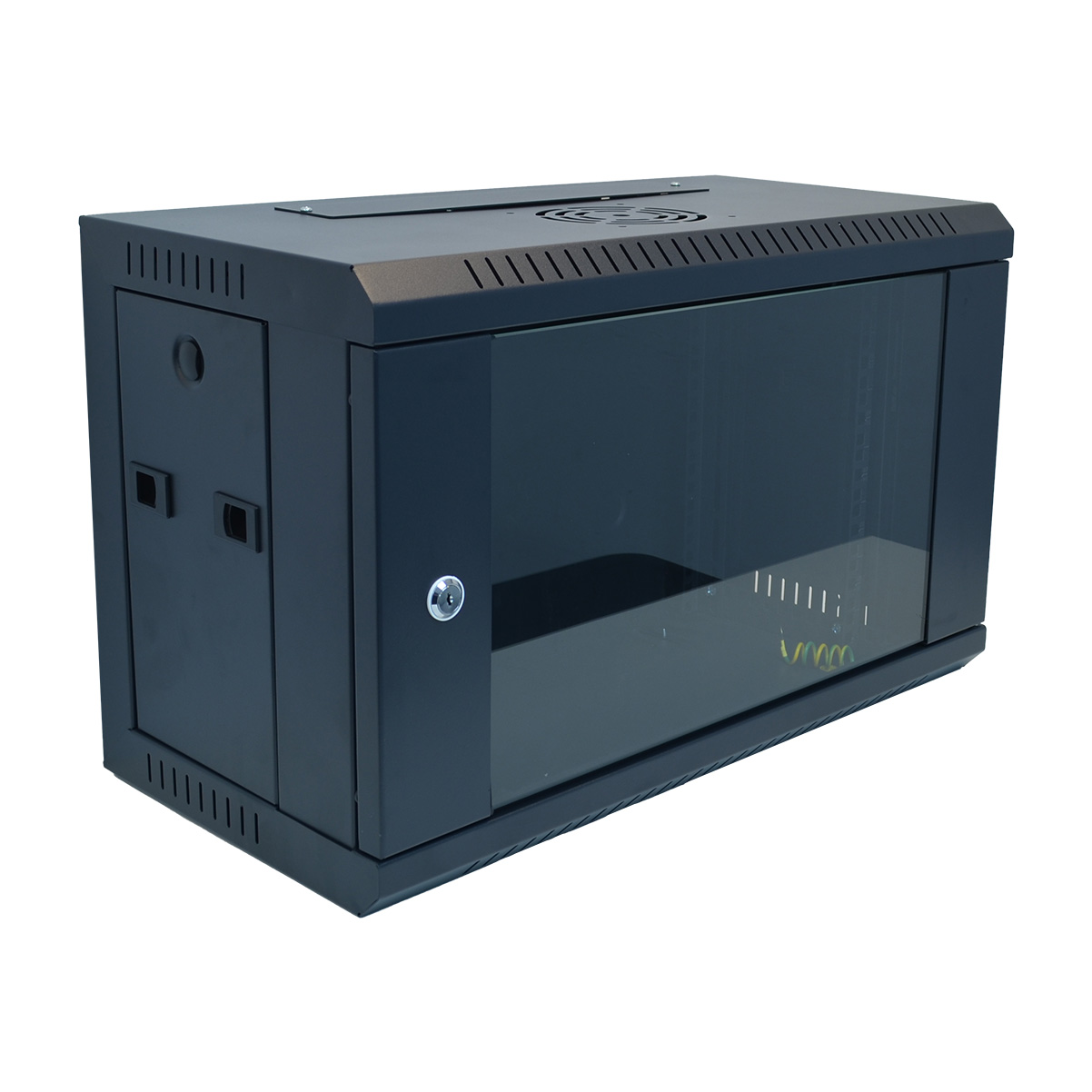

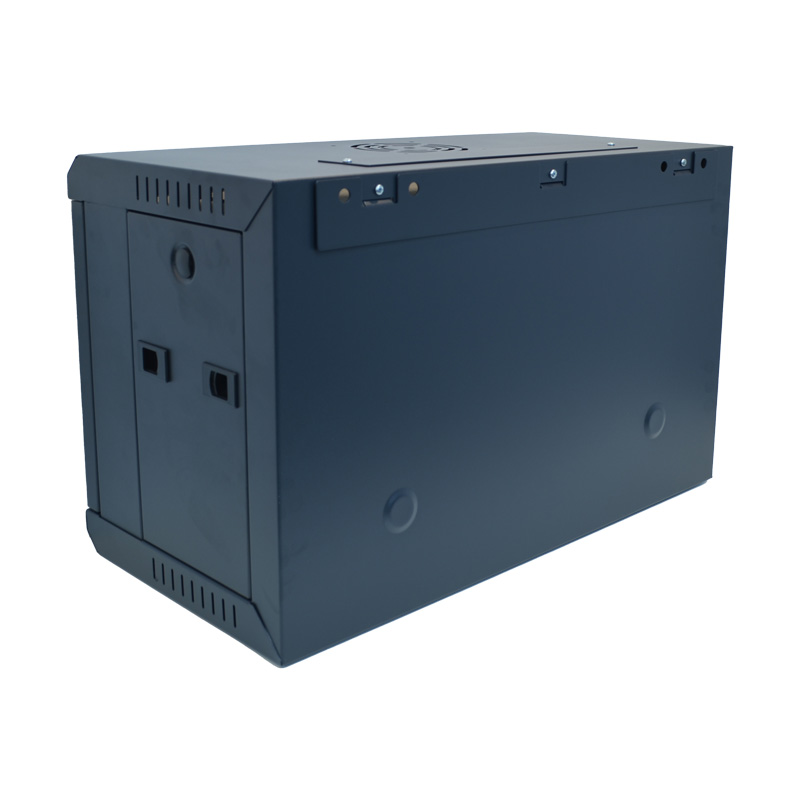

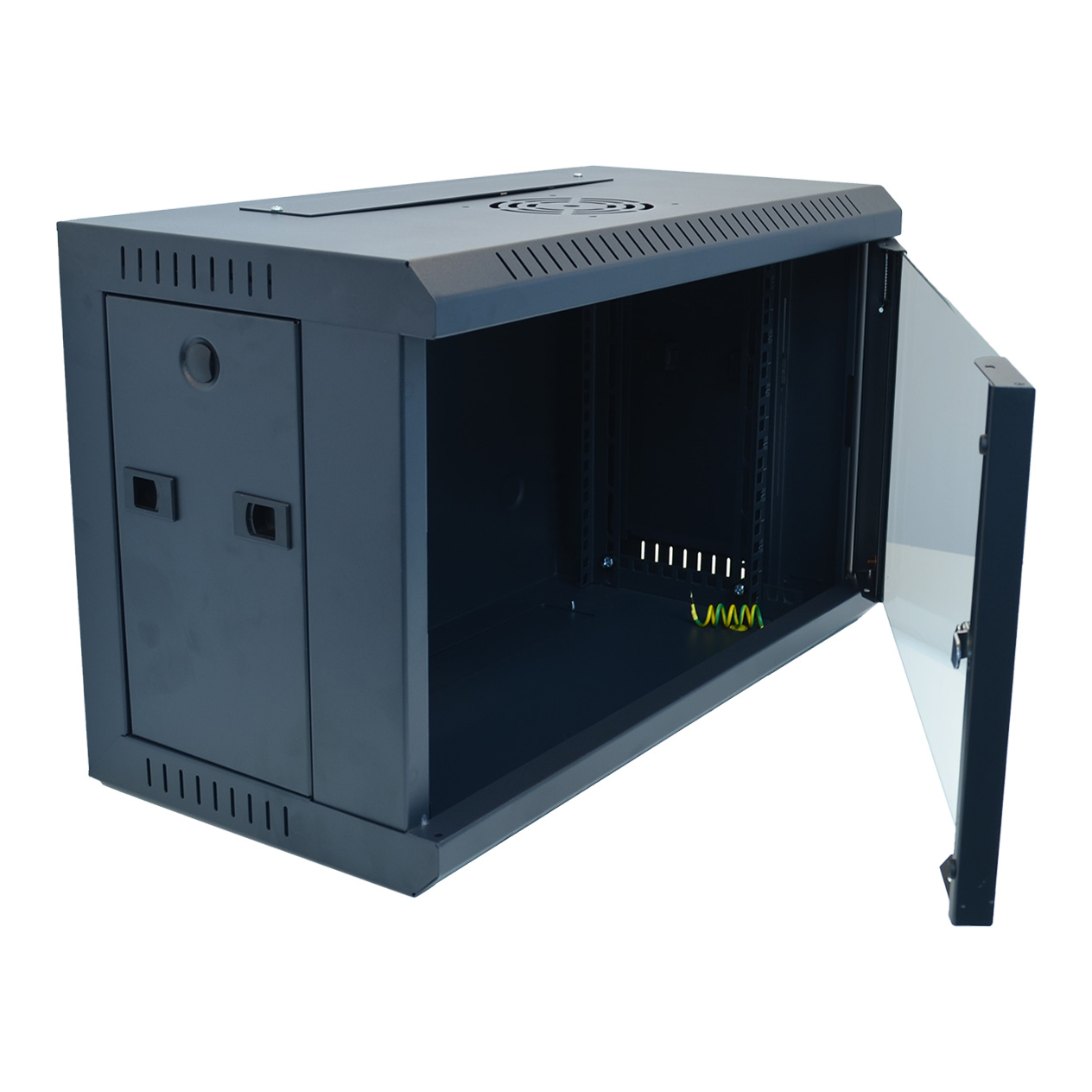

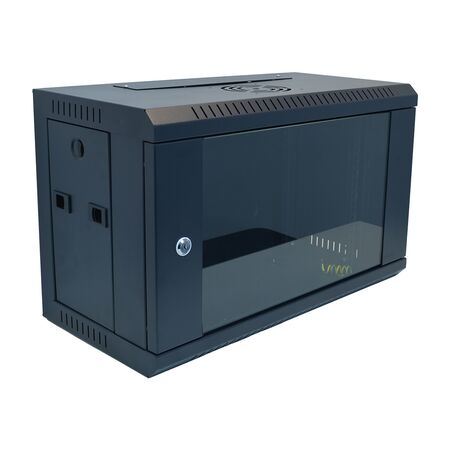

19'' 6RU 300mm Pre-assembled Wall-Mount Data Cabinet | Tempered Glass Door | Quick-Removable Side Panels | by Cornick
The 19'' 6RU 300mm Pre-assembled Wall-Mount Data Cabinet is perfect for network equipment storage and IT infrastructure setups. Featuring a secure tempered glass door with a lock and quick-removable side panels, this cabinet ensures easy access and installation. Built with a durable welded steel frame and powder-coated finish, it’s designed for both commercial and residential applications, making it an ideal choice for small to medium-sized data installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 19'' 6RU 300mm Pre-assembled Wall-Mount Data Cabinet | Tempered Glass Door | Quick-Removable Side Panels | by Cornick
Brand: Cornick
SKU: RMC-B6U300W
Alternatively Known As: Wall Mount Network Cabinet, 6U Data Rack, 19 Inch Wall Mount Cabinet, Network Equipment Enclosure
Technical Specifications
- Rack Units: 6RU
- Width: 19 inches standard
- Depth: 300mm total
- Overall Dimensions: 600mm (W) x 300mm (D) x 370mm (H)
- Material: Welded steel frame with powder coated finish
- Door: Tempered glass 180° swing door with lock
- Side Panels: Quick removable
- Cable Entry: Knock-out plates on top and bottom
- Fan Mount: Space for 120mm fan (fan sold separately)

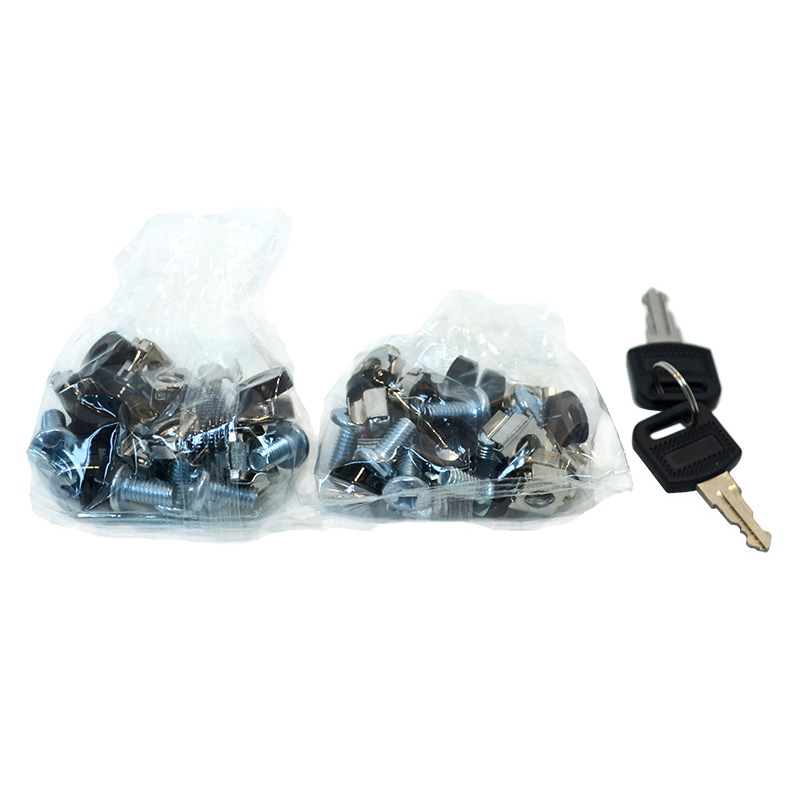

- Accessories Included: Cage nuts, washers, cabinet keys, earthing cable
- Dimensions (H x L x W): 370mm x 300mm x 600mm
- Weight: 10 kg
Key Features
- 19" standard width, 6U rack height cabinet with 300mm depth
- Pre-assembled for quick and easy installation
- Tempered glass 180° swing door with lock for security
- Quick-removable side panels for easy access
- Knock-out plates on top and bottom for cable entry
- Includes earthing cable, cage nuts, washers, and cabinet keys
- Welded frame with powder coated finish
- Top space for 120mm fan mount (fan sold separately)
Professional Installation Requirements
- Professional installation is recommended to ensure secure mounting and proper grounding of the cabinet.
Applications
- Network equipment storage
- Security system installations
- IT infrastructure setups
- Small to medium-sized data and communication installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable powder coated finish extends product life reducing waste
- Pre-assembled design reduces packaging waste and installation time
Warranty Information
Standard manufacturer warranty applies. Please refer to Cornick warranty policy for details.
Available Now
The Cornick 19'' 6RU 300mm Pre-assembled Wall-Mount Data Cabinet is available for immediate purchase, ideal for network, security, and IT equipment installations in commercial and residential settings.
