Trade Discount 20%

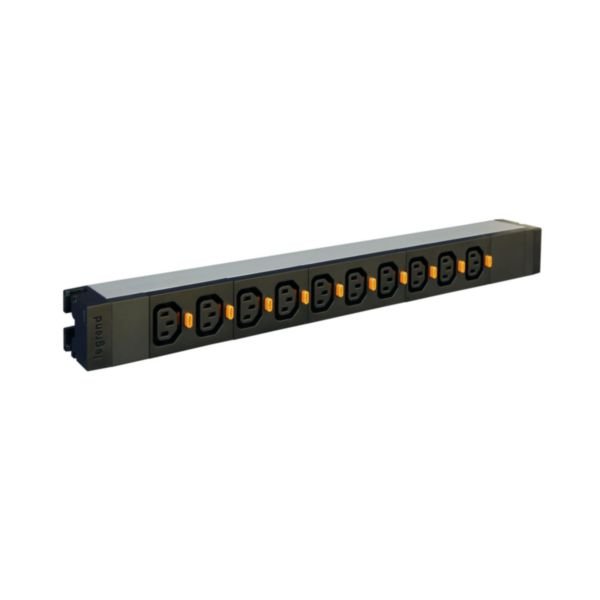

19" PDU 1U 10 x C13 IEC 60320 | IP20 Rated | Aluminium Casing | @EA of 1 | by Legrand
The 19" PDU 1U 10 x C13 IEC 60320 is designed for efficient power distribution in IT equipment, featuring 10 C13 outlets with a cord locking system to prevent disconnections. Ideal for data centers and telecommunications racks, this durable unit supports a maximum power of 3.7kW and can be installed horizontally or vertically, ensuring flexibility in your setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 19" PDU 1U 10 x C13 IEC 60320 | IP20 Rated | Aluminium Casing | @EA of 1 | by Legrand
Brand: Legrand
SKU: 646814
Alternatively Known As: Legrand 19 inch PDU, LCS3 PDU 1U, 10 port C13 power distribution unit, IEC 60320 PDU, Rack mount power strip
Technical Specifications
- Single phase power supply
- Input voltage: 230V AC
- Input current: 16A
- Maximum power: 3.7kW
- Number of C13 outlets: 10 with locking system
- Mounting dimension: 482.6 mm (19 inch standard)
- Mounting size: 465.1 mm
- Mounting direction: Horizontal or vertical
- Electrical connection: Screwed terminal
- Terminal block capacity: 1.5-6 mm²
- Maximum input cable diameter: 10 mm
- Degree of protection: IP20
- Operating temperature: -5 to 40 °C
- Storage temperature: -20 to 70 °C
- Frequency: 50-60 Hz
- Overvoltage category: 2
- Colour: Black
- Dimensions (H x L x W): 44mm x 465mm x 44.3mm
- Weight: 1.5 kg
Key Features
- 10 x C13 outlets with cord locking system to prevent unintended disconnection
- Single phase power supply
- Input voltage: 230V
- Input current: 16A
- Maximum power: 3.7kW
- Aluminium casing for durability
- Quick fixing on 19-inch fixing centers without screws
- Can be installed horizontally or vertically by reverting brackets
- Outlets angled at 90° for easy cable management
- Screwed terminal electrical connection
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe connection to the power supply.
Applications
- Power distribution for IT equipment in 19-inch enclosures
- Data centers and server rooms
- Telecommunications racks
- Network cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient power distribution reduces energy waste
- Durable aluminium casing extends product lifespan
- Cord locking system reduces accidental disconnections and equipment downtime
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand LCS³ 19" PDU 1U 10 x C13 IEC 60320 Standard with Terminal Block is available for immediate purchase. Ideal for IT network racks and data center power distribution.
