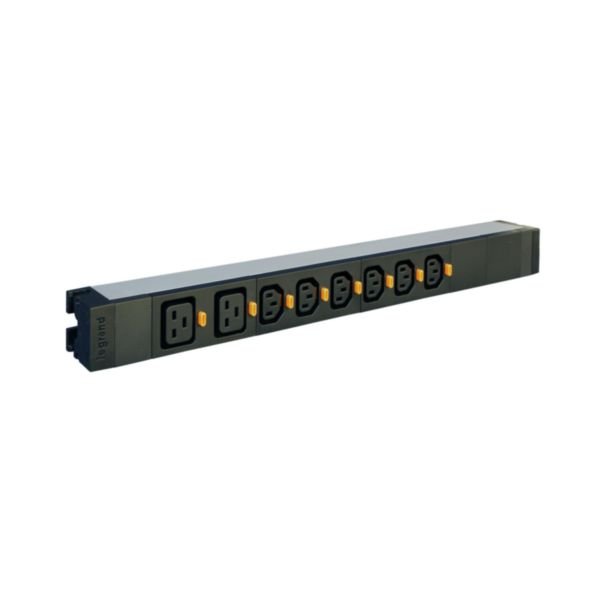

19" PDU 1U with 6 x C13 & 2 x C19 | IP20 Rated | Aluminium Casing | @EA of 1 | by Legrand
The 19" PDU 1U with 6 x C13 and 2 x C19 outlets is designed for efficient power distribution in IT equipment and server racks. With a robust aluminium casing and IP20 rating, it ensures durability and safety. Ideal for data centers and telecommunication cabinets, this PDU features a cord locking system to prevent accidental disconnections, making it perfect for reliable network power supply.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 19" PDU 1U with 6 x C13 & 2 x C19 | IP20 Rated | Aluminium Casing | @EA of 1 | by Legrand
Brand: Legrand
SKU: 646809
Alternatively Known As: Legrand 19 inch PDU, LCS3 PDU 1U, IEC 60320 PDU, Rack Power Distribution Unit, Server Rack PDU
Technical Specifications
- Input voltage: 230 V AC
- Input current: 16 A
- Maximum power: 3.7 kW
- Number of outlets: 6 x C13 + 2 x C19 IEC 60320 standard with locking
- Mounting dimension: 482.6 mm (19 inch)
- Mounting size: 465.1 mm
- Mounting direction: Horizontal or vertical
- Electrical connection: Screwed terminal
- Terminal capacity: 1.5-6 mm²
- Maximum input cable diameter: 10 mm
- Degree of protection: IP20
- Operating temperature: -5 to 40 °C
- Storage temperature: -20 to 70 °C
- Frequency: 50-60 Hz
- Overvoltage category: 2
- Colour: Black (RAL 9017)
- Dimensions (H x L x W): 44mm x 465mm x 44.3mm
- Weight: 1.2 kg
Key Features
- 1U 19 inch PDU with 6 x C13 and 2 x C19 IEC 60320 standard outlets with locking
- Cord locking system prevents unintended disconnection
- Aluminium casing for durability
- Quick fixing on 19 inch fixing centers without screws
- Can be installed horizontally or vertically by reverting brackets
- Single phase, 230V input voltage, 16A input current
- Maximum power 3.7kW
- Angle of outlets is 90° for easy cable management
- Screwed terminal electrical connection
- IP20 degree of protection
- Operating temperature range -5 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe connection to the power supply.
Applications
- Power distribution for IT equipment in 19 inch enclosures
- Data centers and server racks
- Telecommunication cabinets
- Network equipment power supply
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminium casing extends product lifespan reducing waste
- Efficient power distribution reduces energy loss
- Cord locking system prevents accidental disconnections reducing downtime and waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand LCS³ 19" PDU 1U 6 x C13 + 2 x C19 IEC 60320 Standard with Terminal Block is available for immediate purchase. Ideal for IT network racks and data center power distribution.
