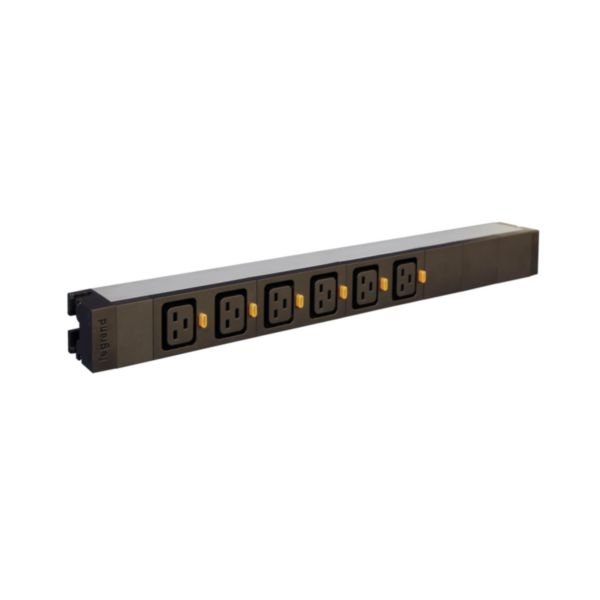

19" PDU 1U 6 x C19 IEC 60320 | Aluminium Casing | IP20 Rated | @EA of 1 | by Legrand
The 19" PDU 1U with 6 x C19 outlets is designed for efficient power distribution in IT environments. Featuring a durable aluminium casing and an IP20 rating, this unit ensures reliable performance in data centers and server rooms. Ideal for professional installation, it supports both horizontal and vertical mounting, making it versatile for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 19" PDU 1U 6 x C19 IEC 60320 | Aluminium Casing | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 646807
Alternatively Known As: Legrand 19 inch PDU, Legrand 1U PDU, Legrand C19 Power Distribution Unit, Legrand IEC 60320 PDU
Technical Specifications
- Single phase power supply
- 6 x C19 outlets with locking mechanism
- Input voltage: 230V
- Input current: 16A
- Maximum power: 3.7kW
- Mounting dimension: 482.6 mm (19 inch)
- Mounting size: 465.1 mm
- Mounting direction: Horizontal/vertical
- Electrical connection: Screwed terminal
- Degree of protection: IP20
- Operating temperature: -5 to 40 °C
- Storage temperature: -20 to 70 °C
- Frequency: 50-60 Hz
- Terminal capacity: 1.5-6 mm²
- Maximum input cable diameter: 10 mm
- Colour: Black
- Dimensions (H x L x W): 44mm x 482.6mm x 44.3mm
- Weight: 1.5 kg
Key Features
- 1U 19-inch PDU with 6 x C19 outlets with cord locking system
- Aluminium casing for durability
- Single phase power supply
- Input voltage: 230V, Input current: 16A, Maximum power: 3.7kW
- Cord locking system prevents unintended disconnection
- Quick fixing on 19-inch fixing centers without screws
- Can be installed horizontally or vertically by reverting brackets
- Outlets angled at 90° for easy cable management
- Screwed terminal electrical connection
- IP20 degree of protection
- Operating temperature range: -5 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe connection to the terminal block.
Applications
- Power distribution for IT equipment in 19-inch enclosures
- Data centers and server rooms
- Telecommunication racks
- Network cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient power distribution reduces energy waste in IT environments
- Durable aluminium casing extends product lifespan, reducing replacement frequency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand LCS³ 19" PDU 1U 6 x C19 IEC 60320 Standard with Terminal Block is available for immediate purchase, ideal for IT network power distribution in data centers and server racks.
