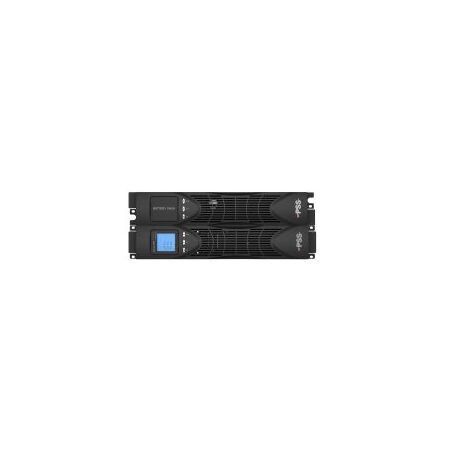

1kVA 0.9kW Online UPS 1 Battery Bank Rack Tower Enduro

BRAND: CABAC
SKU: EN1-1-RT
$2,053.50 List price: $2,738.00
+ −
30 Days Return Electricians Unlock Trade Access
Enduro 1kVA 0.9kW online double conversion UPS features 1 battery bank and rack or tower mounting. Ideal for servers and sensitive IT loads.

Alternatively Known As: ENDURO 1000VA Online UPS, EN1000 Rack/Tower UPS, Pure Sinewave Double-Conversion UPS

Technical Specifications
  • Capacity: 1000VA / 900W
  • Topology: Online double conversion
  • Input Voltage: 230V ±20%
  • Input Frequency Range: 45–65Hz
  • Input Power Factor: ≥0.98
  • Output Voltage: 230V ±2%
  • Output Frequency in Battery Mode: 50Hz ±0.1Hz
  • Output Power Factor: 0.9
  • Waveform: Pure sinewave
  • Battery Type: Sealed lead-acid, maintenance-free
  • Standard Battery Configuration: 3 x 12V 9Ah
  • Rated Battery Voltage: 36V
  • Recharge Time: Approximately 5 hours to 90%
  • Efficiency: 89% normal mode; up to 97% ECO mode
  • Output Sockets: 2 x Australian 3-pin sockets, including critical and non-critical outputs
  • Communications: USB and RS-232 standard; optional SNMP and relay cards
  • Protection: Resettable circuit breaker, surge protection and RJ45 network protection
  • Operating Temperature: 0°C to 40°C
  • Relative Humidity: 0–95%, non-condensing
  • Noise Level: Less than 50dB at 1m
  • Installation Format: 2RU rack-mount or tower
  • Runtime Expansion: Supports up to four compatible extended battery modules
  • Dimensions (H x L x W): 86.5mm x 440mm x 430mm
  • Weight: 15.1 kg
Key Features
  • Online double-conversion architecture for continuous conditioned power
  • Pure sinewave output suitable for servers and sensitive IT equipment
  • Rack or tower mounting for flexible installation
  • Interactive LCD display for operating and battery status
  • USB and RS-232 communications supplied as standard
  • Expandable runtime using compatible extended battery modules
  • Emergency Power Off function
  • Generator compatible
  • Smart management and controlled shutdown software
  • Resettable overload and short-circuit protection
Professional Installation Requirements
  • Installation and commissioning should be performed by suitably qualified electrical personnel. Permanent electrical connections, earthing, isolation and rack installation must follow the manufacturer's instructions and applicable AS/NZS 3000 requirements. Battery replacement and servicing should be carried out by trained personnel.
Applications
  • Servers and small IT infrastructure
  • Network and communications equipment
  • CCTV and camera surveillance systems
  • Telephone and telecommunications systems
  • Point-of-sale equipment
  • Industrial control and sensitive electronic equipment
Standards & Compliance
  • AS 62040.1 / AS IEC 62040.1: Uninterruptible power systems — general and safety requirements
  • AS IEC 62040.2: UPS electromagnetic compatibility requirements
  • AS IEC 62040.3: UPS performance and test requirements
  • AS/NZS 3000: Electrical installations and wiring requirements for installation
Environmental Benefits
  • ECO mode can provide efficiency of up to 97%, reducing operating energy consumption under suitable load conditions
  • Replaceable sealed lead-acid battery bank can extend the service life of the UPS and reduce whole-unit replacement waste
  • Compatible extended battery modules allow runtime capacity to be increased without replacing the UPS
  • Lead-acid batteries should be recovered and recycled through approved battery recycling channels
  • Power conditioning helps protect connected IT equipment from damage and premature replacement
Warranty Information

PSA Products Pty Ltd warranty applies against manufacturing defects, with repair or replacement at PSA's discretion. The warranty period is product-specific and should be confirmed from the individual user manual or authorised Australian distributor. Labour for removal or reinstallation and transport costs are excluded.

Available Now

Available through ENDURO/PSS and authorised Australian electrical, IT and power-quality distributors; distributor stock and lead times should be confirmed before ordering.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
