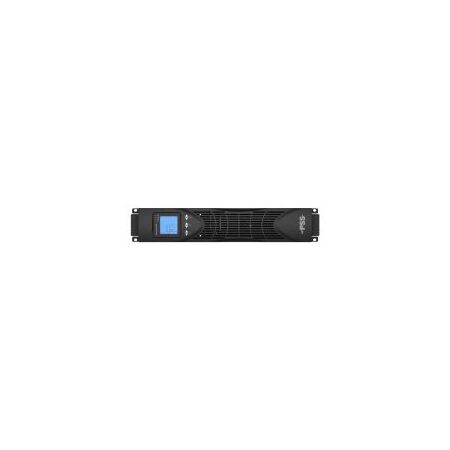

1kVA 0.9kW Online UPS Rack Tower Enduro
Enduro 1kVA 0.9kW online double conversion UPS features rack or tower mounting and extendable run-time via battery modules. Ideal for servers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ENDURO 1000VA UPS, EN1000 Rack-Tower UPS, 1kVA Online UPS, 900W Server UPS
Technical Specifications
- Capacity: 1000VA / 900W
- Topology: Online double conversion
- Input Voltage Range: 184–276V
- Output Voltage: 230V ±2%, user settable
- Input Frequency Range: 45–65Hz
- Output Frequency: 50Hz ±0.1Hz in battery mode
- Phase: Single phase
- Output Power Factor: 0.9
- Waveform: Pure sine wave
- Transfer Time: 0 seconds
- Battery Configuration: 3 x 12V 9Ah VRLA batteries
- Output Sockets: 2 x Australian 10A sockets and 1 x IEC 15A socket
- Communication: USB and RS-232
- Monitoring Expansion: Optional SNMP or relay card
- Runtime Expansion: Supports up to 4 external battery modules
- Installation Format: 2RU rack mount or tower
- Operating Temperature: 0°C to 40°C
- Emergency Power Off: EPO function
- Generator Compatibility: Compatible with generators
- Dimensions (H x L x W): 87mm x 440mm x 430mm
- Weight: 15.1 kg
Key Features
- Continuous online double-conversion protection for sensitive equipment
- Pure sine wave output with zero transfer time
- Rack or tower installation options
- LCD display for UPS status and configuration
- Expandable runtime using compatible external battery modules
- USB and RS-232 interfaces for monitoring and controlled shutdown
- Optional SNMP and relay-card monitoring capability
- Suitable for servers, computers, telecommunications, surveillance and point-of-sale equipment
Professional Installation Requirements
- Installation, commissioning and connection to mains power should be performed by a suitably qualified electrical or UPS technician in accordance with the manufacturer's instructions and applicable Australian electrical requirements. Rack installation should use the specified mounting hardware, and battery servicing should only be performed by trained personnel.
Applications
- Server and network equipment backup
- Telecommunications and telephone systems
- CCTV and security surveillance systems
- Point-of-sale equipment
- Industrial control and electronic equipment
- Small data-room and communications-rack installations
Standards & Compliance
- AS IEC 62040.1: Applicable UPS safety requirements
- AS IEC 62040.2: Applicable UPS electromagnetic compatibility requirements
- AS IEC 62040.3: Applicable UPS performance and test requirements
- AS/NZS 3000: Applicable electrical installation and wiring requirements
Environmental Benefits
- Expandable external battery modules can extend service runtime and reduce the need to replace the UPS as requirements grow
- Replaceable VRLA batteries support maintenance and product-life extension
- Lead-acid batteries should be recovered and recycled through an approved battery recycling scheme
- Online power conditioning can help protect connected equipment and reduce premature replacement of sensitive electronics
Warranty Information
PSA Products Pty Ltd manufacturer warranty applies against manufacturing defects, with repair or replacement at PSA's discretion. Removal, reinstallation and transport costs are excluded; warranty duration should be confirmed with the supplying distributor.
Available Now
Available through ENDURO and authorised Australian distributors, subject to distributor stock and current product support.
