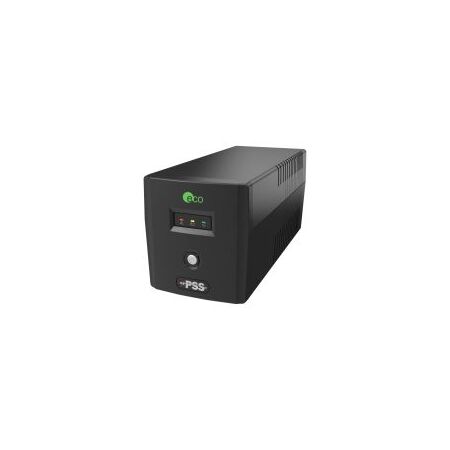

1kVA Line-Interactive UPS with LED Display ECO

BRAND: CABAC
SKU: ECO1000
$351.80 List price: $469.00
+ −
30 Days Return Electricians Unlock Trade Access
ECO 1kVA line-interactive UPS features LED display, surge protection and auto-restart. Ideal for CCTV, computers, point of sale, modems and NBN.

Alternatively Known As: ECO 1000VA UPS, ECO1000 Battery Backup UPS, ECO Series UPS

Technical Specifications
  • Capacity: 1000VA / 600W
  • Topology: Line-interactive
  • Display: LED status indicators
  • Input Voltage: 230V AC
  • AVR Voltage Range: 162–290V AC
  • Output Voltage Regulation: 230V AC ±10%
  • Battery Mode Frequency: 50Hz ±1%
  • Waveform: Modified/simulated sine wave
  • Transfer Time: Typically 2–6ms
  • Output Sockets: 3 x Australian standard 10A UPS outlets
  • Battery Type: Sealed lead-acid
  • Battery Configuration: 2 x 12V 7Ah
  • Recharge Time: Approximately 6–8 hours to 90% capacity after complete discharge
  • Protection: Surge, short-circuit, overload and low-battery protection
  • Functions: Cold start, automatic diagnostics, intelligent battery management and auto-restart
  • Mounting Format: Tower
  • Dimensions (H x L x W): 164mm x 355mm x 150mm
  • Weight: 7.7 kg
Key Features
  • LED display for operating-status indication
  • Boost and buck automatic voltage regulation
  • Full-time surge protection for connected equipment
  • Automatic restart when mains power returns
  • Cold-start capability during mains failure
  • Audible alarms for power and fault conditions
  • Compatible with computers, CCTV, modems, NBN equipment, telecommunications hardware and point-of-sale systems
  • Australian 10A output sockets
Applications
  • CCTV and security systems
  • Desktop computers and office workstations
  • Modems, routers and NBN equipment
  • Point-of-sale terminals
  • Telecommunications equipment
  • Small network and communications devices
Standards & Compliance
  • Applicable Australian safety standard: AS 62040.1:2019 for uninterruptible power systems
Environmental Benefits
  • Sealed lead-acid batteries can be recovered through appropriate battery recycling programmes
  • Automatic voltage regulation can reduce equipment stress caused by voltage fluctuations
  • Intelligent battery management may extend battery service life and reduce replacement waste
  • Replaceable battery architecture can extend the usable life of the UPS compared with disposing of the complete unit
Warranty Information

Specific warranty period was not published in the available manufacturer and distributor information; warranty claims should be handled in accordance with the supplier's applicable warranty terms.

Available Now

Available through ECO and authorised Australian distributors, subject to current stock availability.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
