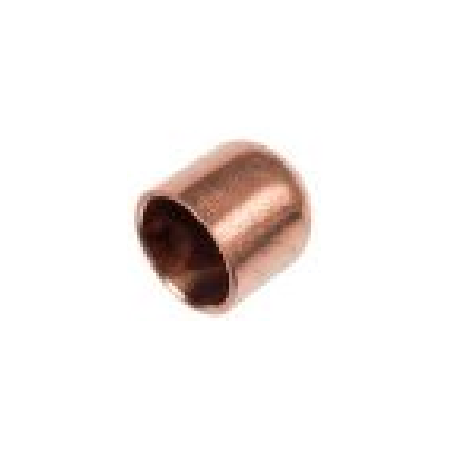

2 1/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | TüV Certified | by Aspen Pumps
The 2 1/8Cap XHP high pressure copper end cap is engineered for high pressure refrigeration systems, featuring a robust 130 bar pressure rating and made from CuFe2p copper iron alloy for exceptional corrosion resistance. Ideal for industrial and commercial HVAC applications, this end cap ensures reliable performance with traditional brazed joining and is TüV certified for quality assurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 1/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-218
Alternatively Known As: High Pressure Copper End Cap, SANHA 130 bar Copper Fitting End Cap, CuFe2p End Cap, Refrigeration Copper End Cap
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Certification: TüV Certified
- Dimensions (H x L x W): 54mm x 54mm x 54mm
- Weight: 0.2 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation must be performed by a qualified HVAC technician experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems
- Systems requiring high corrosion resistance copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty terms as per Aspen Pumps standard policy, typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps 2 1/8Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
