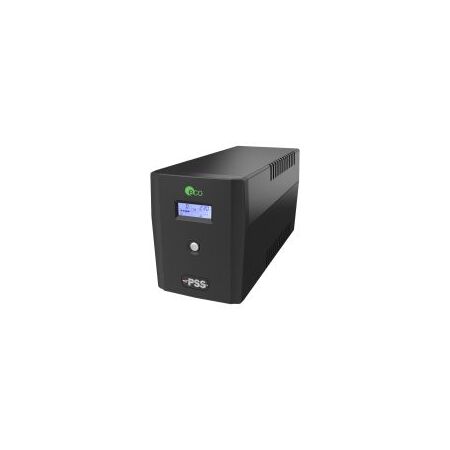

2.2kVA Line-Interactive UPS with LCD ECO

BRAND: CABAC
SKU: ECO2200L
$696.40 List price: $928.60
+ −
30 Days Return Electricians Unlock Trade Access
ECO 2.2kVA line-interactive UPS features LCD display, surge protection and auto-restart. Ideal for CCTV, computers, point of sale, modems and NBN.

Alternatively Known As: ECO2200L, ECO Series 2200VA UPS, ECO Compact Multi-Purpose UPS

Technical Specifications
  • Capacity: 2200VA / 1320W
  • Topology: Line-interactive with automatic voltage regulation
  • Input Voltage: 230Vac
  • AVR Voltage Range: 162-290Vac
  • Output Voltage Regulation: 230Vac ±10%
  • Output Waveform: Modified/simulated sine wave
  • Transfer Time: Typical 2-6ms
  • Battery Type: Sealed lead-acid, maintenance-free
  • Battery Configuration: 2 x 12V 9Ah
  • Recharge Time: 6-8 hours to 90% capacity after complete discharge
  • Display: LCD showing input/output voltage, battery level, load level and UPS status
  • Communication: RS232 and USB
  • Australian Outlets: 4 x AS/NZS 3112 Type I 10A UPS outlets
  • Surge Protection: 125 joules / 4500A
  • Operating Temperature: 0-40°C
  • Operating Humidity: 0-90% RH, non-condensing
  • Audible Noise: Less than 30dB
  • Dimensions (H x L x W): 198mm x 380mm x 158mm
  • Weight: 11.1 kg
Key Features
  • LCD status display for input and output voltage, battery level, load level and UPS operating status
  • Automatic voltage regulation helps correct moderate mains voltage fluctuations
  • Battery backup and surge protection for connected equipment
  • Automatic restart when mains power is restored
  • Modified/simulated sine wave output with fast 2-6ms typical transfer time
  • Four Australian Type I 10A UPS output sockets
  • RS232 and USB communication interfaces with supplied monitoring software
  • Sealed maintenance-free lead-acid battery system
  • Suitable for CCTV, computers, point-of-sale equipment, modems and NBN installations
Professional Installation Requirements
  • Normally plug-in installation; connect to a suitably earthed 230Vac outlet and follow the manufacturer's operating instructions. Battery replacement, internal servicing and any fixed electrical work should be performed by suitably qualified personnel.
Applications
  • CCTV cameras and recording systems
  • Desktop computers and office equipment
  • Point-of-sale systems
  • Modems, routers and NBN equipment
  • Small business and home-office electronics
  • Security, communications and networking equipment requiring short-duration battery backup
Standards & Compliance
  • AS/NZS 3112 Type I 10A socket configuration
  • AS 62040.1:2019 is the applicable Australian UPS safety standard; product-specific certification was not verified
Environmental Benefits
  • Automatic voltage regulation can reduce unnecessary battery operation during moderate voltage fluctuations
  • Sealed lead-acid batteries are recyclable through approved battery recycling programmes
  • Replaceable battery components can extend service life and reduce whole-unit replacement waste
  • Battery backup helps protect connected equipment from power disturbances, potentially reducing premature equipment replacement
Warranty Information

2-year return-to-base warranty through PSS Distributors, subject to proof of purchase and the manufacturer's warranty terms. Transport to the service centre is generally not included under the standard warranty.

Available Now

Available through ECO/PSS Distributors and authorised Australian electrical, security and power-equipment distributors.
