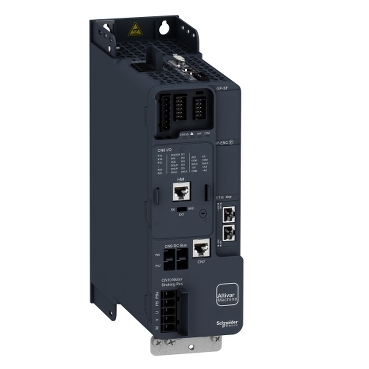

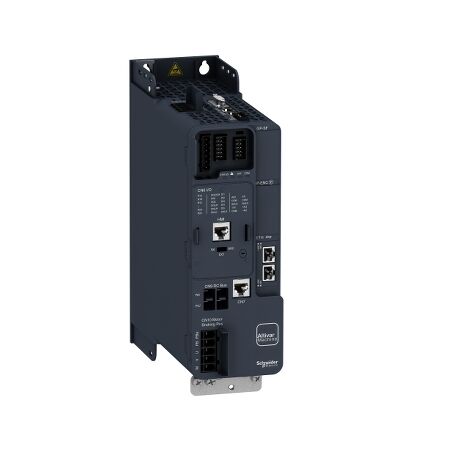

2.2KW 3HP 400V VSD | Integrated Safe Torque Off | High Overload Capacity | by Clipsal
The 2.2KW 3HP 400V VSD is designed for versatile motor control in industrial applications. With an integrated Safe Torque Off (STO) feature and high overload capacity, it ensures reliable performance for pumps, conveyors, and HVAC systems. Ideal for energy-efficient operations, this variable speed drive optimizes motor speed while reducing mechanical wear and maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2.2KW 3HP 400V VSD | Integrated Safe Torque Off | High Overload Capacity | by Clipsal
Brand: Clipsal
SKU: SCHATV340U22N4E
Alternatively Known As: ATV340 VSD, Schneider ATV340U22N4E, 2.2kW Variable Speed Drive, 3HP VSD, 400V Inverter Drive, Clipsal VSD, Schneider Electric ATV340
Technical Specifications
- Power Rating: 2.2kW (3HP)
- Input Voltage: 380-480V three-phase
- Output Frequency: 0.1 to 599Hz
- Overload Capacity: 150% for 60 seconds
- Integrated Safe Torque Off (STO)
- Control Modes: V/F, Sensorless Vector, Field Oriented Control
- Communication: Modbus, CANopen (expandable to Ethernet/IP, Profibus, etc.)
- Operating Temperature: -10°C to +50°C (derating above 50°C)
- Degree of Protection: IP20
- Conformity: CE, UL, cUL, EAC
- Dimensions (H x L x W): 295mm x 232mm x 130mm
- Weight: 5.5 kg
Key Features
- 2.2kW (3HP) power rating for versatile motor control
- 400V three-phase input for industrial applications
- Robust design for harsh environments
- Integrated safety functions including Safe Torque Off (STO)
- Flexible connectivity with multiple communication options
- High overload capacity for demanding applications
- Compact footprint for easy panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- Packaging machinery
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance needs
- Supports sustainable industrial operations by lowering power consumption
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV340 2.2KW 3HP 400V VSD (SCHATV340U22N4E) is available for immediate purchase. Ideal for industrial automation, motor control, and energy-efficient applications.
