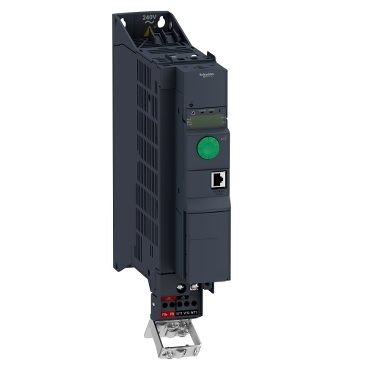

2.2KW 400V 3PH Book VSD | Compact Design | Integrated EMC Filter | Advanced Motor Control | @Pack of 1 | by Clipsal
The 2.2KW 400V 3PH Book VSD is designed for efficient industrial motor control, featuring a compact design for easy panel integration and an integrated EMC filter. Ideal for applications like pumps, fans, and conveyors, this variable speed drive enhances energy efficiency while reducing mechanical wear, making it perfect for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2.2KW 400V 3PH Book VSD | Compact Design | Integrated EMC Filter | Advanced Motor Control | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U22N4B
Alternatively Known As: ATV320 Variable Speed Drive, Schneider ATV320U22N4B, 2.2kW VSD, 3 Phase VSD, Book VSD, Motor Drive, Frequency Inverter
Technical Specifications
- Power Rating: 2.2kW (3HP)
- Input Voltage: 380-500V AC, 3-phase
- Output Voltage: 0-500V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-599Hz
- Integrated EMC filter (C2)
- Control Type: V/F, Sensorless Vector, Synchronous motor control
- Integrated safety function: STO (Safe Torque Off)
- Communication: Modbus, CANopen (embedded)
- Operating Temperature: -10°C to +50°C (without derating)
- Degree of Protection: IP20
- Conformity: CE, UL, cUL, EAC
- Dimensions (H x L x W): 143mm x 153mm x 72mm
- Weight: 2.5 kg
Key Features
- 2.2kW (3HP) power rating
- Three-phase 400V input
- Compact book-style design for easy panel integration
- Integrated EMC filter
- Advanced motor control for asynchronous and synchronous motors
- Integrated safety functions (STO)
- Flexible connectivity with Modbus and CANopen
- Robust design for harsh industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified professional in accordance with local electrical regulations and standards.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical wear and maintenance needs
- Supports sustainable industrial automation
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV320 2.2KW 400V 3PH Book VSD (SCHATV320U22N4B) is available for immediate purchase. Ideal for industrial motor control and automation applications.
