2.4GHz Wireless Link Up to 1.5km IP65 High Gain Antenna Ness

BRAND: Ness
SKU: 101-793-PR
$256.10 List price: $341.50
+ −
30 Days Return Electricians Unlock Trade Access

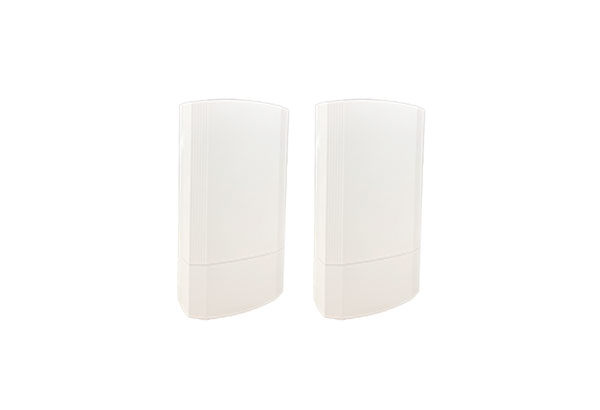

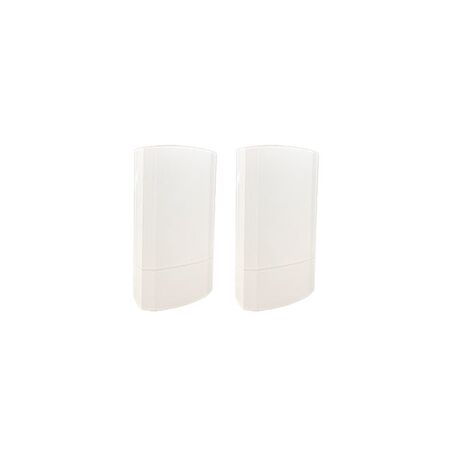

Ness 2.4GHz wireless link features up to 1.5km range, IP65 weatherproofing and a high gain antenna. Ideal for point to point wireless links.

Alternatively Known As: 2.4GHz Outdoor Wireless Bridge, Outdoor CPE Pair, Point-to-Point Wireless Link, UTEPO UBG3102-300

Technical Specifications
  • Model: UTEPO UBG3102-300
  • Product Configuration: Pair of outdoor CPE units
  • Frequency Range: 2.412GHz–2.484GHz ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Wireless Standard: IEEE 802.11b/g/n ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Maximum Wireless Rate: 300Mbps ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Antenna: Integrated 8dBi directional 2x2 MIMO antenna ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Transmission Range: Up to 1.5km under suitable line-of-sight conditions ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Network Ports: 1 x 10/100Base-T PoE WAN and 1 x 10/100Base-T LAN per unit ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Power Method: 24V, 0.5A passive PoE ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Maximum Power Consumption: 5W per unit ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Operating Temperature: -30°C to +55°C ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Protection Rating: IP65 ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Protection: 6kV ESD and 2kV surge protection ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Management: Web management with AP and repeater modes ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Included: 2 outdoor CPE units, 2 power adapters, 2 power cables, mounting accessories, 2 Ethernet cables and quick installation guide ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • Dimensions (H x L x W): 57.6mm x 168mm x 88mm
  • Weight: 1.5 kg
Key Features
  • Point-to-point and point-to-multipoint wireless networking
  • Integrated high-gain directional antennas for extended outdoor links
  • Up to 1.5km transmission range in suitable installation conditions
  • IP65 weather-resistant enclosure for outdoor deployment
  • One-key pairing for simplified link setup
  • Web-based management
  • Passive PoE power delivery
  • Suitable for video surveillance and wireless broadband access
Professional Installation Requirements
  • Professional installation is recommended for outdoor mounting, alignment, Ethernet routing and PoE connection. Install in accordance with the manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
  • Point-to-point links between buildings
  • Outdoor video surveillance transmission
  • Wireless broadband access to remote areas
  • Extending a network to sheds, garages, warehouses or other outbuildings
  • Outdoor networking for commercial, agricultural and residential sites
Standards & Compliance
  • AS/NZS 4268:2017 Amd 1:2021 is the applicable Australian radio equipment technical standard referenced by ACMA for relevant radio devices; confirm the product-specific RCM and supplier declaration before installation or supply. ([acma.gov.au](https://www.acma.gov.au/technical-standards?utm_source=openai))
Environmental Benefits
  • Reduces the need for long physical network cable runs between buildings
  • Maximum power consumption of approximately 5W per outdoor CPE supports low-power operation ([utepo.net](https://www.utepo.net/product/detail/384.html?utm_source=openai))
  • IP65 outdoor protection can help extend service life and reduce replacement waste when correctly installed and maintained
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified. Warranty claims are subject to Ness terms and exclusions. ([ness.com.au](https://ness.com.au/product-warranty))

Available Now

Available through Ness and authorised Australian electrical, security and communications distributors.
