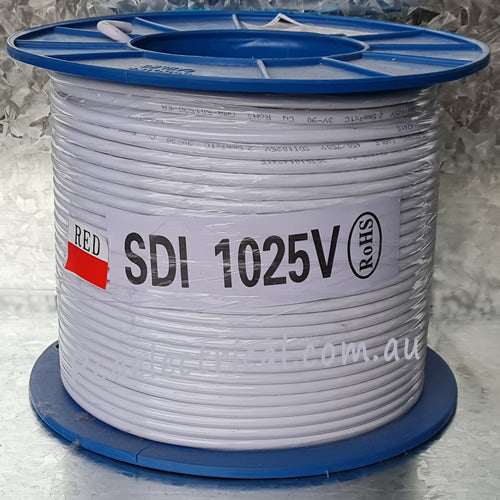

2.5mm SDI Red Cable | Single Core Copper Conductor | PVC Insulated | @M of 100 | by Electra Cables
The 2.5mm SDI Red Cable is designed for reliable electrical wiring, featuring a single core copper conductor and durable PVC insulation. Ideal for both residential and commercial applications, this cable is perfect for switchboards, control panels, and general power circuits. With a length of 100 metres, it ensures convenience and compliance with AS/NZS standards for safe installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2.5mm SDI Red Cable | Single Core Copper Conductor | PVC Insulated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SDI1025V-100RED
Alternatively Known As: 2.5mm single core cable, 2.5mm SDI cable, 2.5mm red building wire, 2.5mm electrical wire, SDI1025V-100RED
Technical Specifications
- Conductor Size: 2.5mm²
- Conductor Material: Plain annealed copper
- Insulation: PVC (Polyvinyl Chloride)
- Colour: Red
- Voltage Rating: 450/750V
- Length: 100 metres
- Compliance: AS/NZS 5000.1
- Operating Temperature: -15°C to +90°C
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 7.5 kg
Key Features
- Single core, 2.5mm² copper conductor
- PVC insulated for durability and safety
- Colour coded red for active wire identification
- Supplied in a 100m reel for convenience
- Suitable for fixed wiring applications
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical wiring
- Switchboards and control panels
- General power and lighting circuits
- Suitable for use in conduit and trunking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1 kV
Environmental Benefits
- PVC insulation is lead-free and compliant with RoHS standards.
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Electra Cables 2.5mm SDI Red 100m is available for immediate purchase. Ideal for residential and commercial fixed wiring applications.
