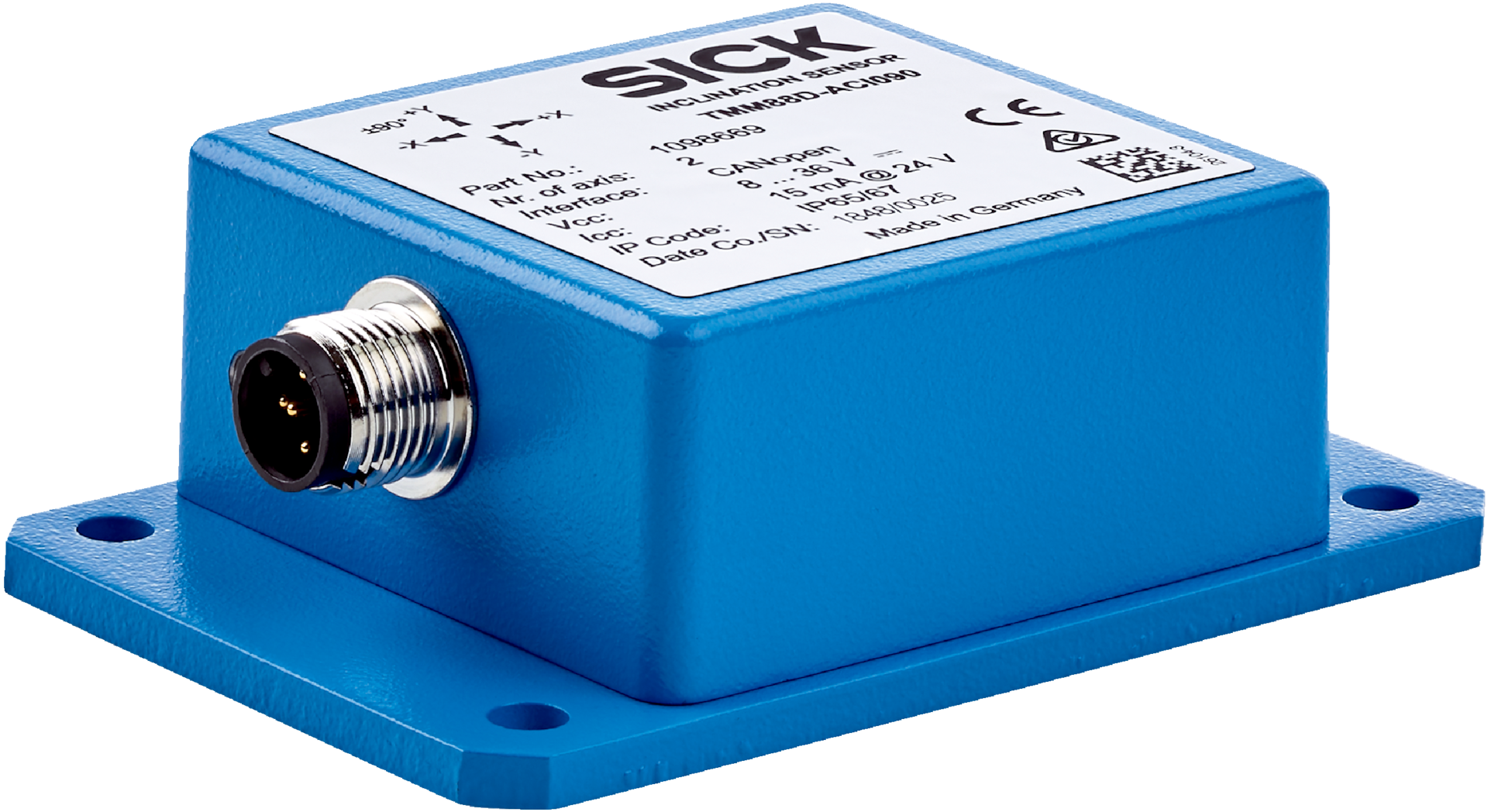

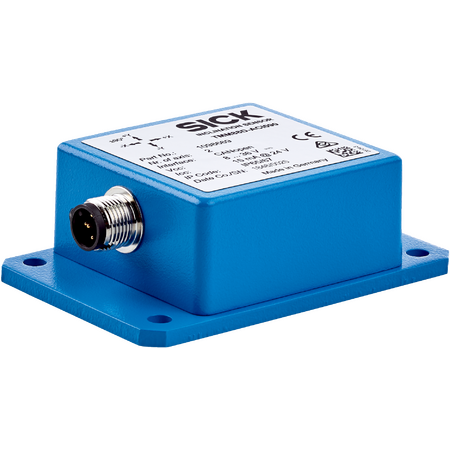

2-Axis Angle Sensor | ±90° Measurement Range | 0.01° Resolution | IP67 & IP69K Protection | by SICK

BRAND: SICK
SKU: 1098669
$1,776.20 List price: $2,232.50
+ −
30 Days Return Electricians Unlock Trade Access
The 2-Axis Angle Sensor offers precise angle measurement with a ±90° range and a high resolution of 0.01°. Ideal for industrial automation and robotics, this sensor features robust aluminum housing with IP67 and IP69K protection, ensuring reliability in harsh environments. With dynamic measurement accuracy of ±0.5° and a wide operating temperature range from –40 °C to +80 °C, it’s perfect for machine safety systems requiring dependable angle detection.

Alternatively Known As: 2-Axis Angle Sensor, CANopen Angle Sensor, Industrial Position Sensor, SICK TMM88D

Technical Specifications
  • Number of axis: 2
  • Measuring range: ±90°
  • Resolution: 0.01°
  • Static measurement accuracy: ±0.3°
  • Dynamic measurement accuracy: ±0.5°
  • Temperature coefficient (zero point): Typ. ±0.01°/K
  • Limit frequency: 0.1 Hz to 25 Hz with digital filter
  • Sampling rate: 200 Hz
  • Acceleration range: ±8 g (x-, y-, z-axis)
  • Turning rate: ±250 °/s (x-, y-, z-axis)
  • Communication interface: CANopen
  • Device profile: CiA DSP-410
  • Address setting: 0 to 127, default 10
  • Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
  • Connection type: Male and female M12 5-pin connectors
  • Supply voltage: 8 V DC to 36 V DC
  • Current consumption: <15 mA at 24 V
  • Reverse polarity and short-circuit protection included
  • Housing material: Aluminum
  • Enclosure rating: IP67 and IP69K
  • Operating temperature range: –40 °C to +80 °C
  • Storage temperature range: –40 °C to +85 °C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 10 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 31mm x 90mm x 58mm
  • Weight: 0.2 kg
Key Features
  • 2-axis measurement with ±90° range
  • High resolution of 0.01° and static accuracy of ±0.3°
  • Dynamic measurement accuracy of ±0.5°
  • Robust aluminum housing with IP67 and IP69K protection
  • Wide operating temperature range from –40 °C to +80 °C
  • CANopen communication interface with automatic baud rate detection
  • Short-circuit and reverse polarity protection
  • High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation for precise angle measurement
  • Robotics for position and motion control
  • Machine safety systems requiring reliable angle detection
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 61000 series EMC standards as per EN 61326-1
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption (<15 mA at 24 V) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK TMM88D-ACI090 angle sensor is available for immediate purchase, ideal for industrial automation and safety applications.
