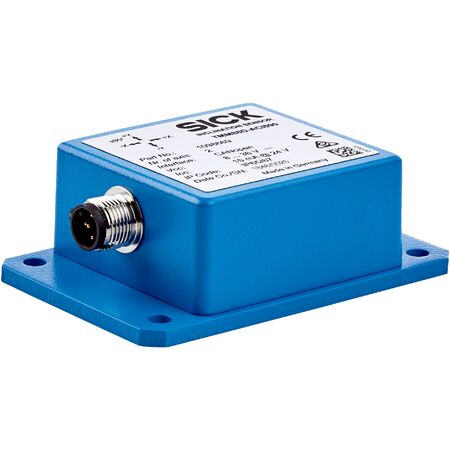

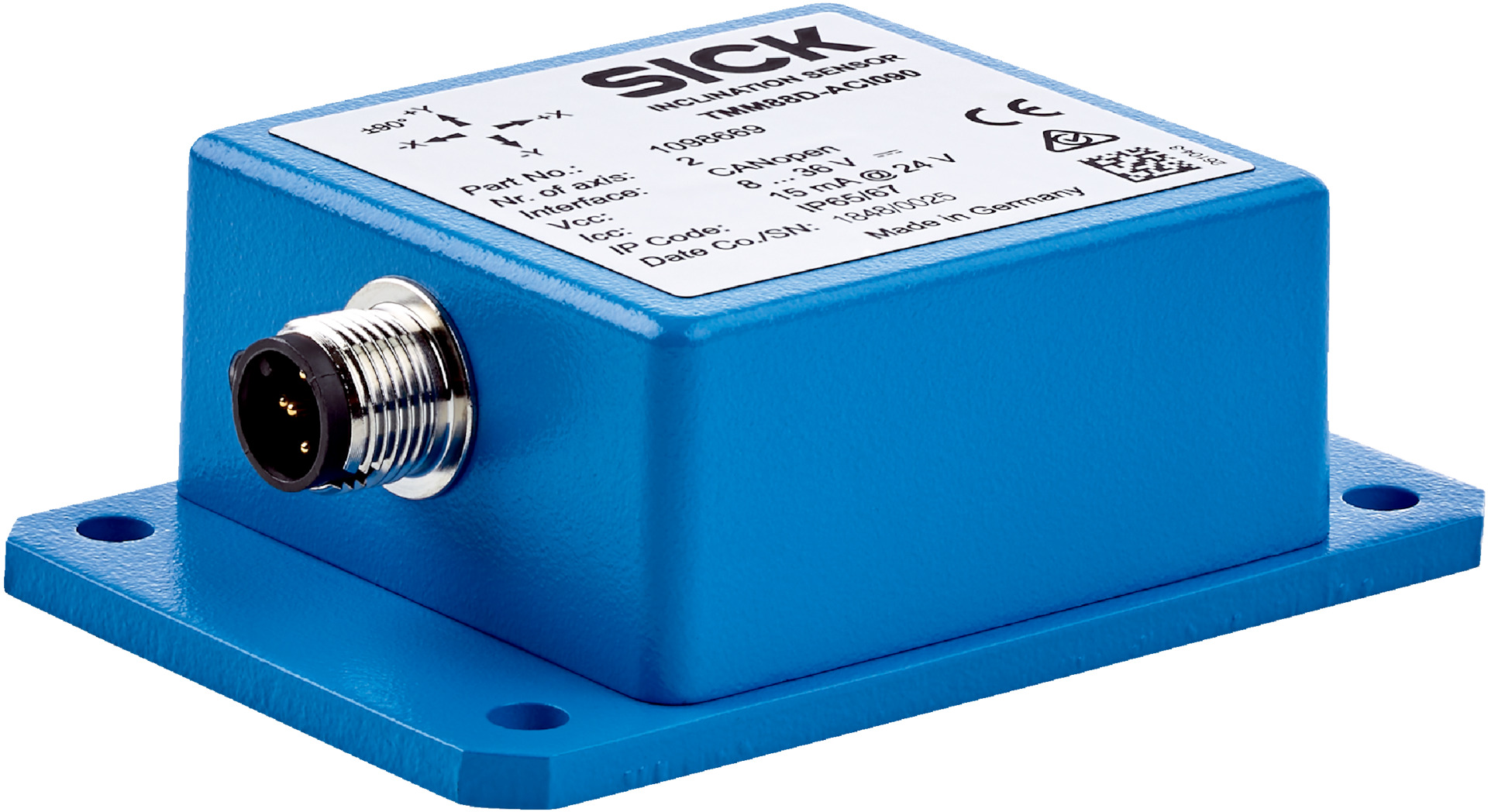

2-Axis Angle Sensor | ±90° Measurement Range | High Resolution 0.01° | IP67 & IP69K Protection | by SICK
The 2-Axis Angle Sensor offers precise angle measurement with a ±90° range and high resolution of 0.01°. Designed for industrial automation and robotics, it features robust IP67 and IP69K protection, ensuring reliability in harsh environments. With a wide operating temperature range from –40 °C to +80 °C, this sensor is perfect for machine safety systems and automotive applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 619 years (EN ISO 13849-1)
- Number of axes: 2
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Pitch (Euler angle): ±90° (Pitch), ±180° (Roll)
- Acceleration: ±8 g (x, y, z-axis)
- Turning rate: ±250 °/s (x, y, z-axis)
- Communication interface: CANopen with CiA DSP-410 profile
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Connection type: Male and female M12 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: <15 mA at 24 V
- Reverse polarity and short-circuit protection included
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 31mm x 90mm x 58mm
- Weight: 0.2 kg
Key Features
- 2-axis measurement with ±90° range
- High resolution of 0.01° and static accuracy of ±0.3°
- Robust aluminum housing with IP67 and IP69K protection
- CANopen communication interface with CiA DSP-410 device profile
- Wide operating temperature range from –40 °C to +80 °C
- Reverse polarity and short-circuit protection
- Fast initialization time of 120 ms
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise angle measurement
- Robotics for position and motion control
- Machine safety systems requiring reliable sensor data
- Automotive and manufacturing process monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low current consumption (<15 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TMM88D-ACI090 2-Axis Angle Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
