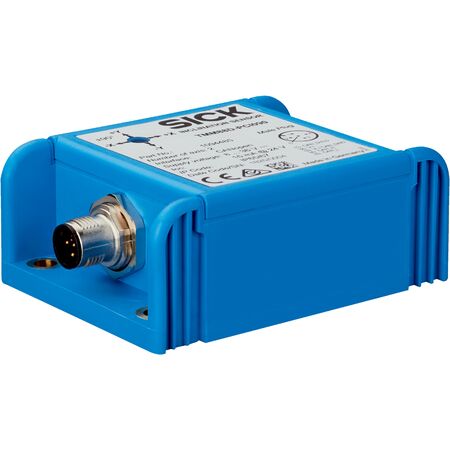

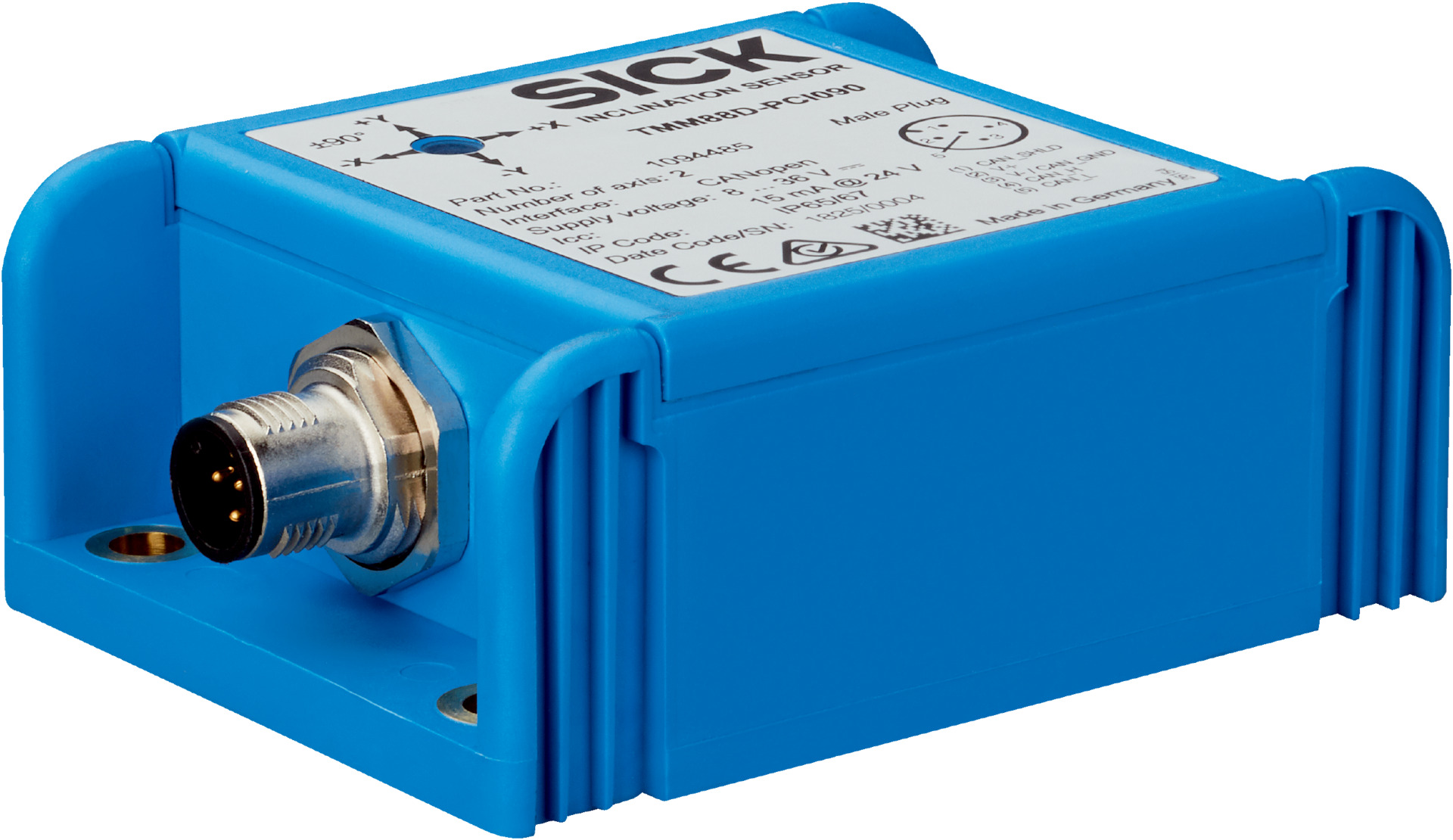

2-Axis Angle Sensor | ±90° Measuring Range | 0.01° Resolution | IP67 & IP69K Rated | by SICK
The 2-Axis Angle Sensor TMM88D-PCI090 offers precise angle measurement with a ±90° range and a high resolution of 0.01°. Designed for industrial automation and robotics, it features robust IP67 and IP69K protection, ensuring reliability in harsh environments. With a wide operating temperature range from –40 °C to +80 °C, this sensor is perfect for safety monitoring and control systems requiring high accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axis: 2
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Communication interface: CANopen
- Device profile: CiA DSP-410
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Connection type: Male and female M12 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA at 24 V
- Reverse polarity and short-circuit protection: Yes
- Housing material: Plastic (PBT)
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- 2-axis measurement with ±90° measuring range
- High resolution of 0.01° and static accuracy of ±0.3°
- Dynamic measurement accuracy of ±0.5°
- Robust plastic (PBT) housing with IP67 and IP69K protection
- Wide operating temperature range from –40 °C to +80 °C
- CANopen communication interface with CiA DSP-410 device profile
- Short-circuit and reverse polarity protection
- Sampling rate of 200 Hz and limit frequency up to 25 Hz
- Resistance to shocks up to 100 g and vibration up to 10 g
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and CANopen network configuration is recommended to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise angle measurement
- Robotics for motion control and positioning
- Safety-related monitoring in machinery
- Measurement and control systems requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low current consumption (<15 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMM88D-PCI090 sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
