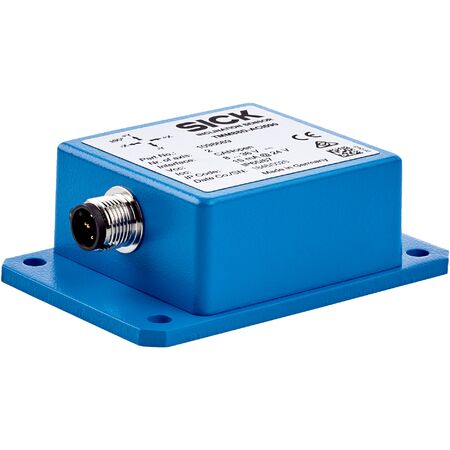

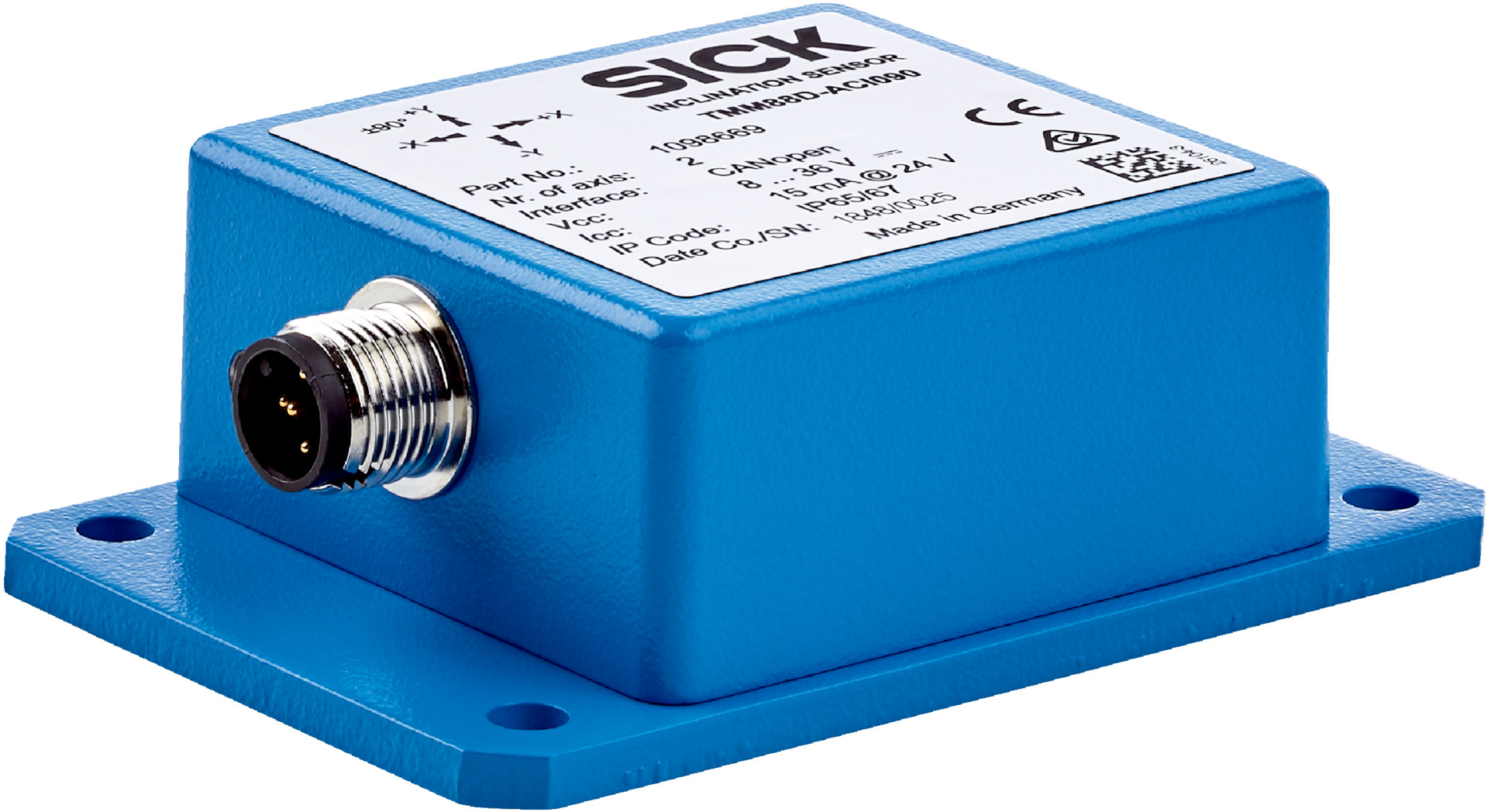

2-Axis Angle Sensor TMM88D-AJI090 | ±90° Range | 0.01° Resolution | IP67 & IP69K Protection | by SICK
The 2-Axis Angle Sensor TMM88D-AJI090 offers precise angle measurement with a ±90° range and high resolution of 0.01°. Designed for industrial automation and vehicle monitoring, it features robust IP67 and IP69K protection, ensuring reliability in harsh environments. With a wide operating temperature range from –40 °C to +80 °C, this sensor is perfect for safety-related applications requiring accurate tilt and roll detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axes: 2
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Acceleration range: ±8 g (x, y, z axes)
- Turning rate: ±250 °/s (x, y, z axes)
- Communication interface: SAE J1939
- Address setting: 0 to 253 (default 128)
- Data transmission rate: 250 kbit/s to 500 kbit/s (default 250 kbit/s)
- Connection type: Male and female M12, 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: <15 mA at 24 V
- Protection: Reverse polarity and short-circuit protection
- Enclosure rating: IP67 and IP69K
- Operating temperature: –40 °C to +80 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 31mm x 90mm x 58mm
- Weight: 0.2 kg
Key Features
- 2-axis measurement with ±90° range
- High resolution of 0.01° and static accuracy of ±0.3°
- Dynamic measurement accuracy of ±0.5°
- Robust aluminum housing with IP67 and IP69K protection
- Wide operating temperature range from –40 °C to +80 °C
- Communication via SAE J1939 with configurable parameters
- Reverse polarity and short-circuit protection
- Fast initialization time of 120 ms
