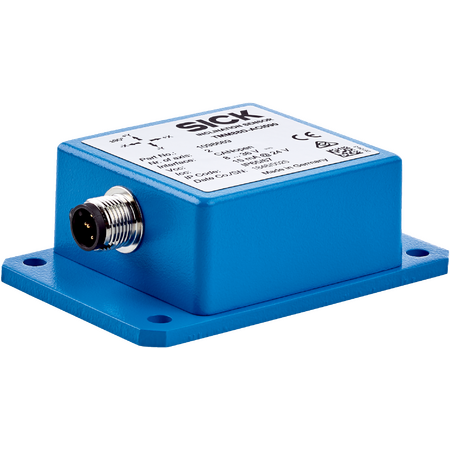

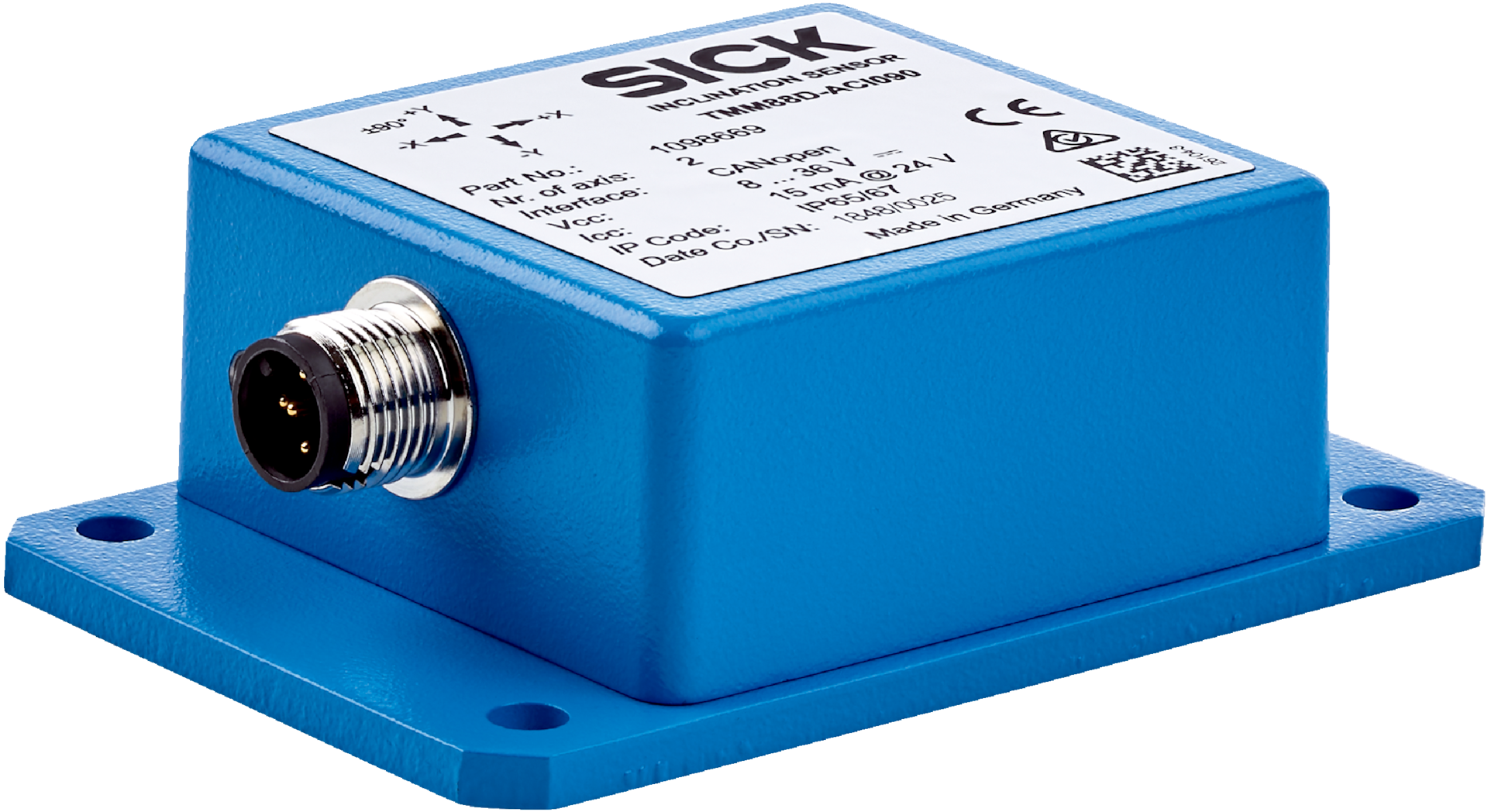

2-Axis Angle Sensor TMM88D-AJI090 | ±90° Range | High Resolution 0.01° | IP67 & IP69K Protection | by SICK

BRAND: SICK
SKU: 1098671
$1,776.20 List price: $2,232.50
+ −
30 Days Return Electricians Unlock Trade Access
The 2-Axis Angle Sensor TMM88D-AJI090 offers precise angle measurement with a ±90° range and high resolution of 0.01°. Designed for industrial automation and vehicle safety applications, it features robust IP67 and IP69K protection, ensuring reliability in harsh environments. With a wide operating temperature range from -40°C to +80°C, this sensor is perfect for tilt and roll monitoring in various machinery and robotics systems.

Alternatively Known As: 2-Axis Angle Sensor, Tilt Sensor, Roll Sensor, SAE J1939 Angle Sensor, Industrial Angle Measurement Sensor

Technical Specifications
  • Number of axis: 2
  • Measuring range: ±90°
  • Resolution: 0.01°
  • Static measurement accuracy: ±0.3°
  • Dynamic measurement accuracy: ±0.5°
  • Temperature coefficient (zero point): Typ. ±0.01°/K
  • Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
  • Sampling rate: 200 Hz
  • Acceleration range: ±8 g (x, y, z-axis)
  • Turning rate: ±250 °/s (x, y, z-axis)
  • Communication interface: SAE J1939
  • Address setting: 0 to 253 (default 128)
  • Data transmission rate: 250 kbit/s to 500 kbit/s (default 250 kbit/s)
  • Connection type: Male and female M12, 5-pin connectors
  • Supply voltage: 8 V DC to 36 V DC
  • Current consumption: <15 mA @ 24 V
  • Reverse polarity and short-circuit protection included
  • Enclosure rating: IP67 and IP69K
  • Operating temperature range: -40°C to +80°C
  • Resistance to shocks: 100 g, 6 ms
  • Resistance to vibration: 10 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 31mm x 90mm x 58mm
  • Weight: 0.2 kg
Key Features
  • 2-axis measurement with ±90° range
  • High resolution of 0.01° and static accuracy of ±0.3°
  • Robust aluminum housing with IP67 and IP69K protection
  • Wide operating temperature range from -40°C to +80°C
  • Communication via SAE J1939 interface with configurable parameters
  • Reverse polarity and short-circuit protection
  • Fast initialization time of 120 ms
  • Complies with multiple international EMC and safety standards
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and configuration of the SAE J1939 interface and sensor parameters.
Applications
  • Industrial automation for precise angle measurement
  • Vehicle and machinery tilt and roll monitoring
  • Robotics and motion control systems
  • Safety-related applications requiring reliable angle sensing
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 61326-1 for EMC requirements
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption (<15 mA at 24 V) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK TMM88D-AJI090 angle sensor is available for immediate purchase, ideal for industrial automation and vehicle safety applications.
