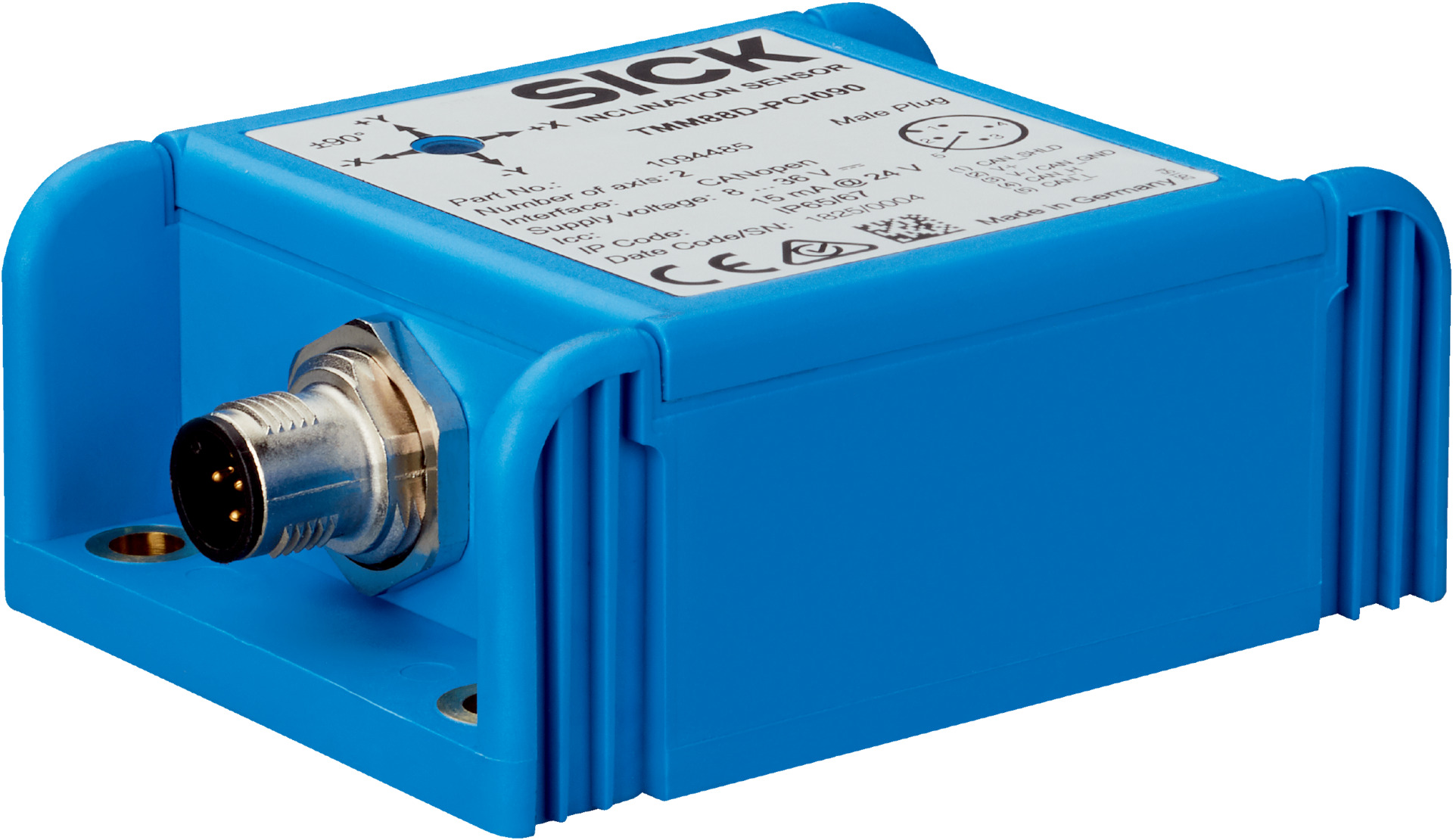

2-Axis Tilt Sensor | ±90° Measurement Range | High Resolution 0.01° | IP67 & IP69K Rated | by SICK
The 2-Axis Tilt Sensor offers precise angle measurement with a ±90° range and high resolution of 0.01°. Ideal for industrial automation and robotics, it features robust IP67 and IP69K rated housing, ensuring durability in harsh environments. With dynamic accuracy of ±0.5° and a CANopen communication interface, this sensor is perfect for machine safety systems and vehicle tilt detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axis: 2
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Acceleration range: ±8 g (x-, y-, z-axis)
- Turning rate: ±250 °/s (x-, y-, z-axis)
- Communication interface: CANopen
- Device profile: CiA DSP-410
- Data transmission rate: 10 kbit/s to 1,000 kbit/s (default 500 kbit/s)
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA @ 24 V
- Connection type: Male and female M12, 5-pin connectors
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- 2-axis measurement with ±90° range
- High resolution of 0.01° and static accuracy ±0.3°
- Dynamic accuracy ±0.5° with temperature compensation
- CANopen communication interface with CiA DSP-410 profile
- Robust IP67 and IP69K rated plastic housing
- Operating temperature range from –40 °C to +80 °C
- Reverse polarity and short-circuit protection
- Configurable parameters via PGT-12-Pro software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the CANopen interface and sensor parameters.
Applications
- Industrial automation for precise angle measurement
- Robotics requiring accurate tilt and orientation data
- Machine safety systems with real-time monitoring
- Vehicle and mobile machinery tilt detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable IP67/IP69K housing reduces need for frequent replacements
- Low power consumption (<15 mA) supports energy-efficient operation
- Robust design minimizes electronic waste through extended service life
Warranty Information
Warranty terms as provided by SICK, typically 1-2 years against manufacturing defects.
Available Now

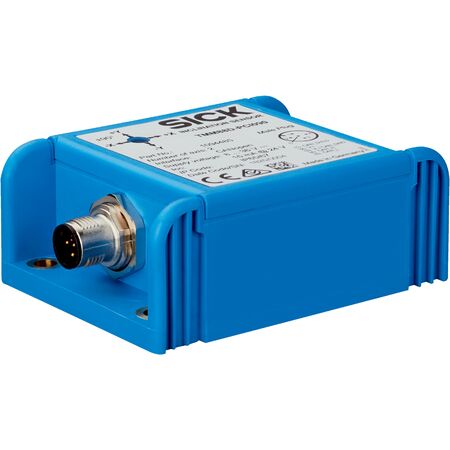

The SICK TMM88D-PCI090S05 tilt sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise angle measurement.
