Trade Discount 17%

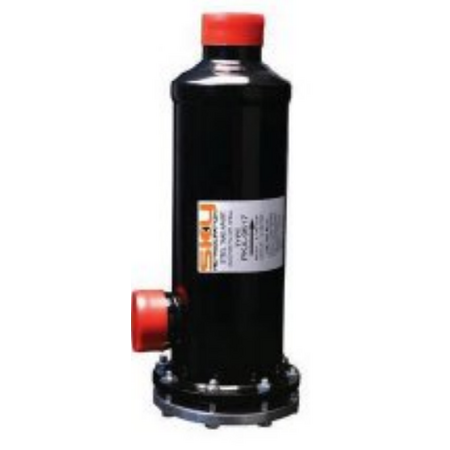

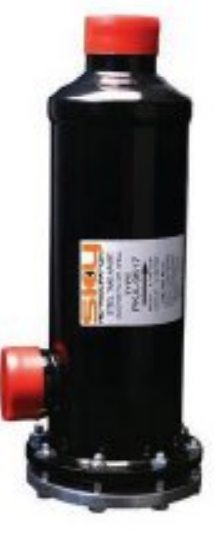

2 Core - 1-1/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 2 Core - 1-1/8 SOL Pressure Vessel is designed for HVAC systems requiring high pressure refrigerant handling. With a robust construction that includes a double plated steel end plate and solid copper connections, it ensures durability and ease of installation. Ideal for both commercial and residential refrigeration and air conditioning applications, this vessel supports efficient refrigerant handling while minimizing environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Core - 1-1/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-1802
Alternatively Known As: Pressure Vessel 2 Core 1-1/8 SOL, Accessible Filter & Drier Shell, HVAC Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C
- Condensing temps: 30°C and 32°C
- Pressure drop (Pd): 7 kPa (1 psi)
- Connection size: 1 1/8 inch

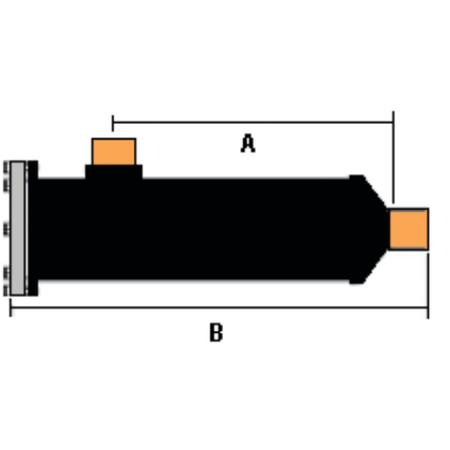

- Length (B): 280 mm
- Dimensions (H x L x W): 280mm x 100mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure compliance with safety and operational standards.
Applications
- HVAC systems requiring high pressure refrigerant handling
- Commercial and residential refrigeration and air conditioning
- Systems using R-410a refrigerant and CO2 upgradeable setups
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration systems safety and environmental requirements
Environmental Benefits
- Supports efficient refrigerant handling reducing leaks and environmental impact
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps SKY Pressure Vessel 2 Core - 1-1/8 SOL is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring high pressure and reliable filtration.
