Trade Discount 17%

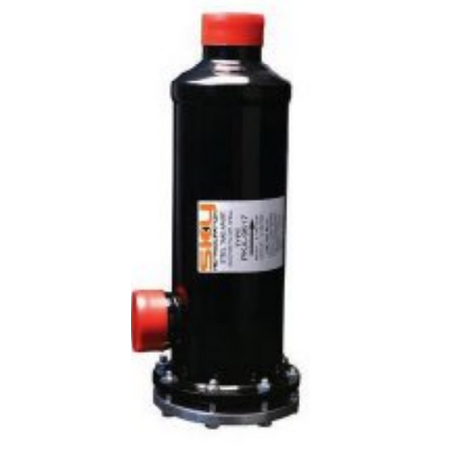

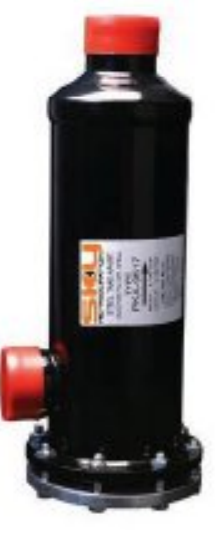

2 Core - 1-5/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 2 Core - 1-5/8 SOL Pressure Vessel is designed for HVAC systems requiring high-pressure accessible filter and drier shells. Built to handle R-410a and CO2 refrigerants, it features a durable anti-corrosion powder coat finish and solid copper connections for easy installation. Ideal for commercial and industrial refrigeration applications, this vessel ensures efficient operation and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Core - 1-5/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2602
Alternatively Known As: Pressure Vessel 2 Core 1-5/8 SOL, Accessible Filter Drier Shell, HVAC Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Liquid capacity and suction capacity calculated at evaporating temps -15°C and 4.4°C
- Condensing temps: 30°C and 32°C
- Pressure drop (Pd): 7 kPa (1 psi)
- Connection size: 1 5/8 inch

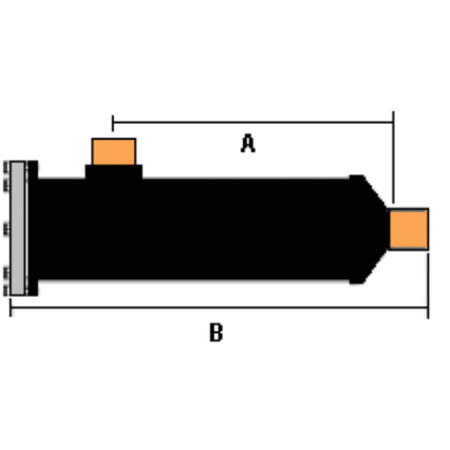

- Length (B): 280 mm
- Dimensions (H x L x W): 280mm x 280mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure accessible filter and drier shells
- Refrigeration systems using R-410a and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps SKY Pressure Vessel 2 Core - 1-5/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning applications.
