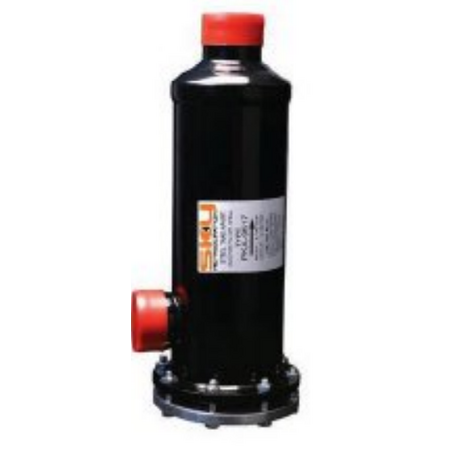

2 Core - 3 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 2 Core - 3 SOL Pressure Vessel is designed for HVAC systems requiring high-pressure accessible drier shells. Built to handle R-410a and CO2 refrigerants, it features a durable double plated steel end plate and solid copper connections for easy installation. Ideal for commercial and industrial refrigeration, this vessel ensures efficient particulate removal and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Core - 3 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-4802
Alternatively Known As: Pressure Vessel 2 Core 3 SOL, Accessible Filter Drier Shell, HVAC Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C
- Condensing temps: 30°C and 32°C
- Pressure drop (Pd): 7 kPa (1 psi)
- Connection count: 3

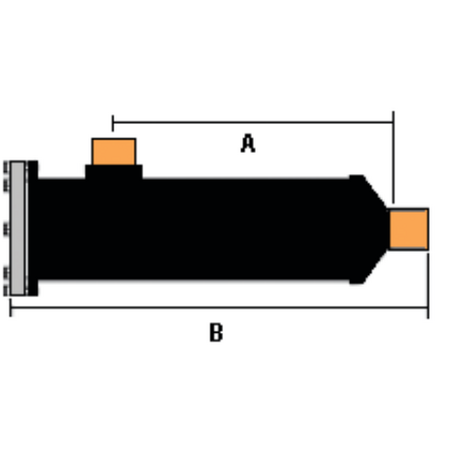

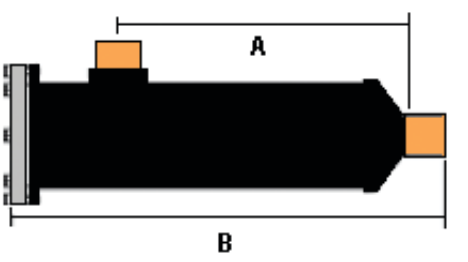

- Length (B): 280 mm
- Dimensions (H x L x W): 280mm x 100mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring high-pressure accessible drier shells
- Refrigeration systems using R-410a and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 5149.2 for Refrigeration Systems and Heat Pumps
Environmental Benefits
- Supports use of environmentally friendly refrigerants like R-410a and CO2
- Durable construction reduces replacement frequency and waste
- Efficient particulate removal helps maintain system efficiency and reduce energy consumption
Warranty Information
Warranty details available upon request from Aspen Pumps, typically 1-2 years against manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel 2 Core - 3 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning applications.
