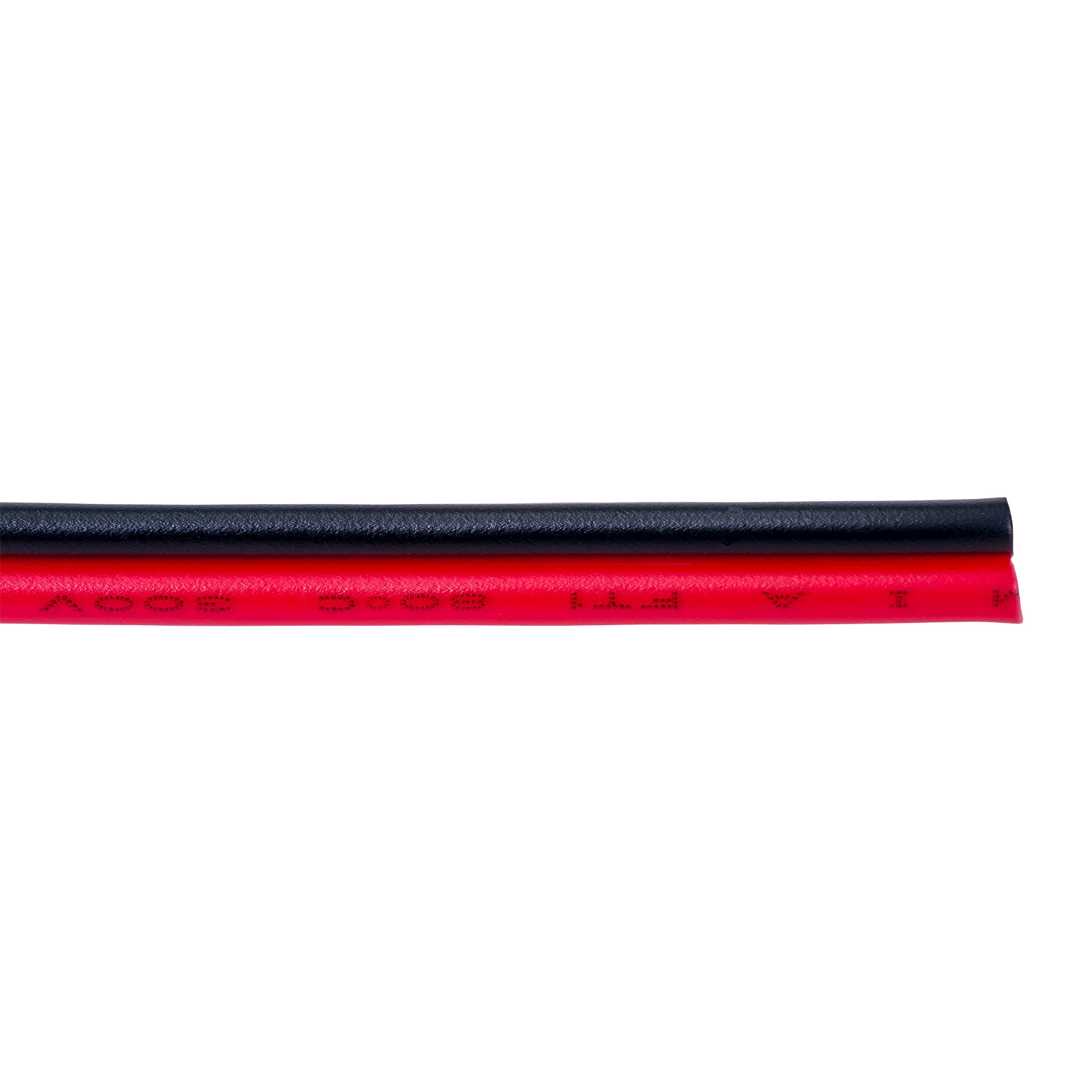

2 Core Red and Black Cable | 22 AWG | 300V | -30 to +80°C by Havit
2 core cable with 22 AWG conductor and 300V rating—ideal for LED strip installations. Built for reliable polarity identification, with red/black insulation and a temperature range of -30 to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Core red and black cable
Brand: Havit
SKU: HV9981
Alternatively Known As: LED strip cable, 2 core cable, red and black cable, polarity cable
Technical Specifications
- Conductor: 22 AWG (0.33 sqmm)
- Nominal outer diameter: 1.6/3.2 mm
- Temperature Rating: -30 to +80 Degrees
- Voltage (AC/DC): 300 V
- Current Rating: 2.1 A
- Dimensions (H x L x W): 1.6mm x 1000mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Red/Black insulation for polarity identification.
- PVC insulation conductor: 22 AWG (0.33 sqmm).
- Temperature rating: -30 to +80 degrees.
- Voltage rating: 300 V.
- Current rating: 2.1 A.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and performance.
Applications
- Ideal for use with single colour 12v or 24v DC LED strip.
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Complies with relevant electrical safety standards.
Warranty Information
3 years replacement warranty for items ordered after 01/01/2022.
Available Now
The 2 Core Red and Black Cable is available now for immediate purchase. Ideal for LED strip applications.
