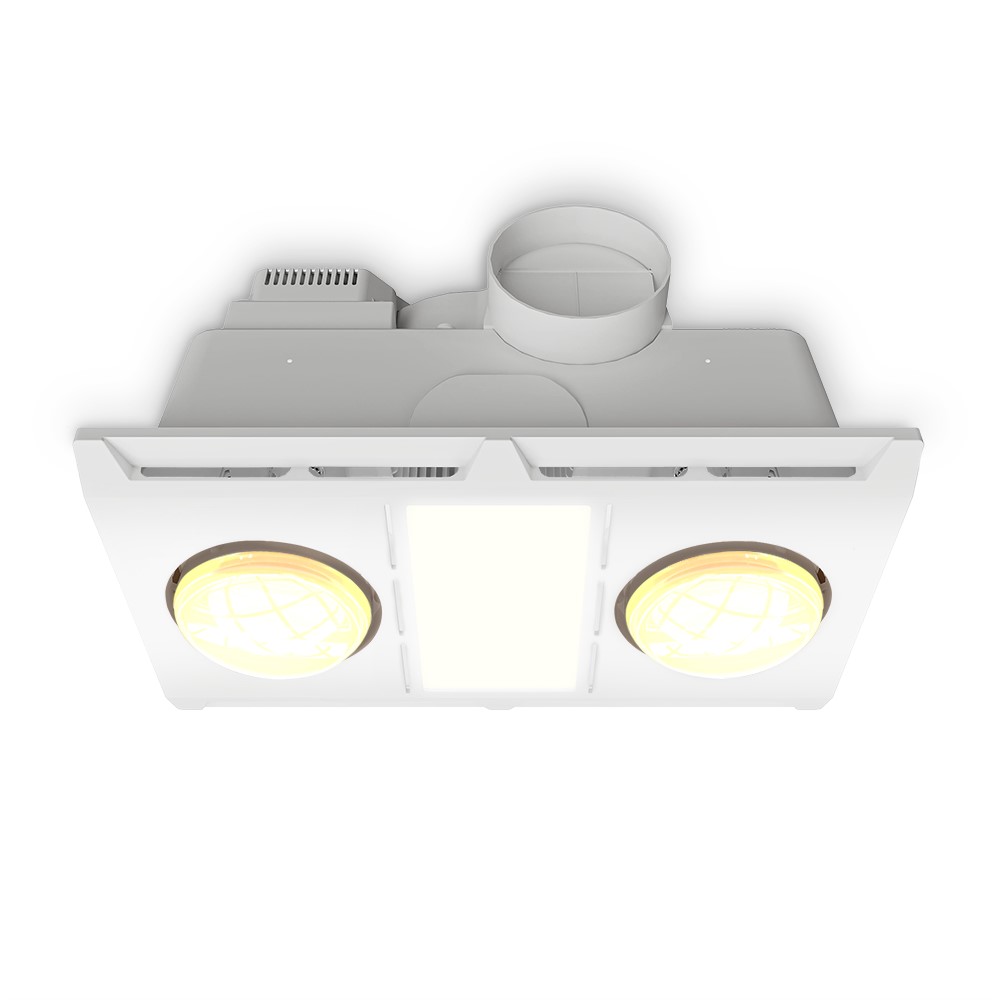

2-Light High-Velocity Bathroom Heater & Exhaust | 400 m3/hr Air Extraction | Tri-CCT LED Panel | IPx2 Rated | by atom
The 2-Light High-Velocity Bathroom Heater & Exhaust is designed for efficient bathroom ventilation and heating. With a powerful 400 m3/hr air extraction rate and two 275W IR heat lamps, it ensures a comfortable environment. The Tri-CCT LED panel offers warm, cool, and daylight options, making it perfect for residential and small commercial washrooms while maintaining a low noise level of 47 dB.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bathroom exhaust fan heater with LED, Bathroom heater fan with light, High velocity bathroom fan heater
Technical Specifications
- Total System Efficiency: 90 lm/W
- IP Rating: IPx2
- IC Rating: Do not cover
- Fitting Colour: White
- Installation Type: Recessed
- Working Temperature Range: 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 5000K)
- LED Output: 810 lm (3000K), 900 lm (4000K), 880 lm (5000K)
- Air Outlet Diameter: 125 mm
- Noise Level: 47 dB
- Motor Wattage: 40 W
- Motor Type: Ball bearing
- Fan Type: Centrifugal
- Air Extraction Rate: 400 m3/hr
- Heater Type: 2x 275W IR Heat Lamps (E27)
- Product Design Life: 10 years
- Daily Use Recommendation: 2 hours
- Dimensions (H x L x W): 200mm x 400mm x 400mm
- Weight: 5 kg
Key Features
- High-velocity exhaust fan with 400 m3/hr air extraction
- 2x 275W IR heat lamps (E27) for efficient heating
- Tri-CCT LED panel with warm white, cool white, and daylight options
- IPx2 rated for bathroom use
- Recessed installation type
- Low noise level at 47 dB
- Ball bearing motor with centrifugal fan
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Bathroom ventilation and heating
- Residential bathrooms
- Small commercial washrooms
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60335.2.30
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS CISPR 14.1
Environmental Benefits
- Energy-efficient LED lighting with 90 lm/W system efficiency
- Improved air quality reduces mold and moisture buildup
- Long product design life of 10 years reduces waste
Warranty Information
3 years onsite warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 2-Light High-Velocity Bathroom Heater & Exhaust with LED Panel is available for immediate purchase, ideal for residential and commercial bathroom heating and ventilation.
