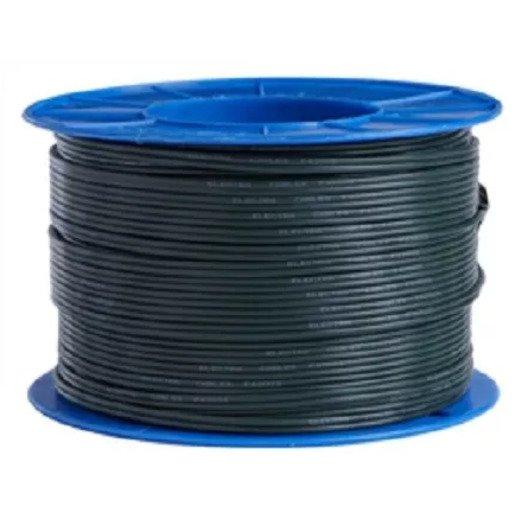

2 Pair Shielded Instrumentation Cable | PVC Insulation | 0.5mm² | Black Sheath | @100M by Electra Cables
The 2 Pair Shielded Instrumentation Cable is designed for reliable electronic instrumentation and control wiring. Featuring robust PVC insulation and a black sheath, this cable ensures durability and protection against environmental factors. Ideal for both indoor and outdoor applications, it’s perfect for professionals seeking high-quality connectivity solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Insulation Material: PVC V90HT
- Core Colours: White and Black numbered cores
- Sheath Material: PVC 5V-90
- Sheath Colour: Black
- Voltage Rating: 240V radial thickness sheath; not for mains power
- Pairs: 2
- Stranding Number: 7/0.30
- Nominal Area: 0.5 mm²
- Outer Diameter: 7.7 mm
- Insulation Thickness: 0.5 mm
- Sheath Thickness: 0.8 mm
- Dimensions (H x L x W): 7.7mm x 100000mm x 7.7mm
- Weight: 0.5 kg
Key Features
- Insulation Material: PVC V90HT
- Core Colours: White and Black numbered cores for easy identification
- Sheath Material: PVC 5V-90
- Sheath Colour: Black
- Voltage Rating: Designed for 240V radial thickness sheath; not for mains power connection
- Pairs: 2
- Stranding Number: 7/0.30
- Nominal Area: 0.5 mm²
- Outer Diameter: 7.7 mm
- Insulation Thickness: 0.5 mm
- Sheath Thickness: 0.8 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with instrumentation and shielded cable installations to ensure safety and performance.
Applications
- Instrumentation and control wiring
- Electronic equipment connectivity
- Indoor and outdoor electronic applications requiring shielded cable
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust PVC sheath provides protection against environmental factors, extending cable life and reducing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables warranty policy for details.
Available Now
The Electra Cables 7/0.3 X 2PR O/A SHLD 100M Instrumentation Cable is available now for immediate purchase. Ideal for electronic instrumentation and control wiring applications.
