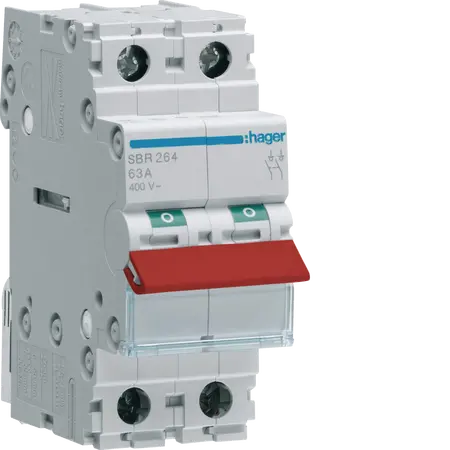

2-Pole 63A Modular Switch | 50mm² Red Toggle | Compact Design by Hager
2-pole, 63A modular switch with 50mm² capacity and red toggle—ideal for industrial and commercial main switchboards. Built for durability with 40,000 mechanical operations and compact design for efficient panel space use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-pole, 63A Modular Switch 50mm² with Red Toggle
Brand: Hager
SKU: SBR264
Alternatively Known As: Hager SBR264 Modular Switch
Technical Specifications
- Number of poles: 2
- Rated current: 63 A
- Breaking capacity 400 V AC23A: 1332 A
- Rated conditional short-circuit current Icc with gl-gG fuses: 0.94 kA
- Rated operational voltage Ue: 400 V AC
- Rated insulation voltage Ui: 440 V
- Frequency: 50 - 60 Hz
- Type of bottom connection: Screw terminal
- Cross-section flexible conductor: 6 - 35 mm²
- Cross-section rigid conductor: 6 - 50 mm²
- Number of mechanical operations: 40000
- Electrical durability at nominal load in AC21: 2500 cycles
- Ingress Protection (IP) class: IP20
- Rated impulse withstand voltage Uimp: 6000 V
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.4 kg
Key Features
- Compact 2-module design for efficient use of panel space.
- Red toggle for easy visual identification and operation.
- High endurance with 40,000 mechanical operations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Used in industrial settings for controlling heavy machinery.
- Applicable in commercial buildings for main switchboard installations.
- Ideal for use where a robust and reliable switch is required.
Standards & Compliance
- Complies with IEC 60947-3 for switch performance.
Environmental Benefits
- Durable design reduces need for frequent replacements.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The 2-pole, 63A Modular Switch with Red Toggle is available now for immediate purchase. Ideal for electrical control panels in industrial and commercial settings.
