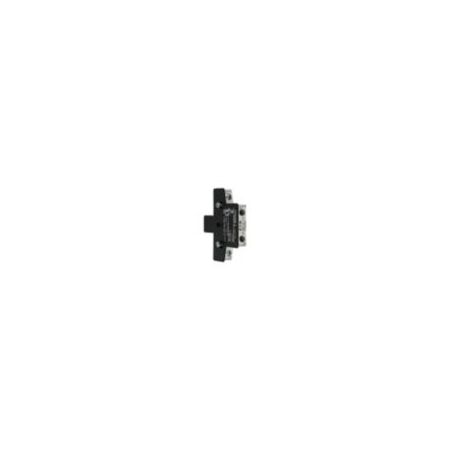

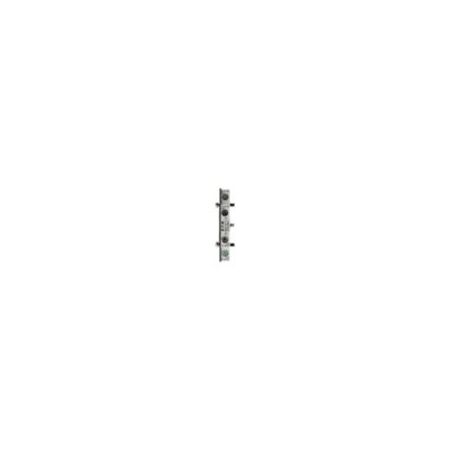

2 Pole Auxiliary Contact Module | 10 A Rated Current | Side Mounting & Screw Terminals | Eaton
This 2 pole auxiliary contact module features a 10 A rated operational current and side mounting with screw terminals—ideal for industrial control panels. Built for automation systems, it offers high electrical lifespan and protection against direct contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Pole Auxiliary Contact Module | 10 A Rated Current | Side Mounting & Screw Terminals | Eaton
Brand: Eaton
SKU: Y7-208281
Alternatively Known As: Auxiliary contact block, DILM auxiliary contact, 2 pole auxiliary contact module, Eaton DILM contact module
Technical Specifications
- Number of poles: 2 (1 N/O, 1 N/C)
- Rated operational current (Ie): 10 A at 24 V DC L/R ≤ 15 ms
- Rated insulation voltage (Ui): 690 V
- Rated operational voltage (Ue) max AC: 500 V
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Electrical lifespan: 1,300,000 operations at 230 V AC-15, 3 A
- Mounting method: Side mounting
- Connection type: Screw terminals
- Protection: Finger and back-of-hand proof (EN 50274)
- Ambient operating temperature: -40 °C to 60 °C
- Pollution degree: 3
- Overvoltage category: III
- Terminal capacity flexible with ferrule: 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
- Terminal capacity solid: 2 x (0.75 - 2.5) mm², 1 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 77mm x 77mm x 15mm
- Weight: 0.037 kg
Key Features
- 2 pole auxiliary contact module with 1 normally open and 1 normally closed contact
- Side mounting with screw terminals for secure electrical connection
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Rated operational current up to 10 A and rated insulation voltage of 690 V
- Protection against direct contact from front (finger and back-of-hand proof)
- Wide ambient operating temperature range from -40 °C to 60 °C
- High electrical lifespan of 1,300,000 operations at 230 V AC-15, 3 A
- Rated impulse withstand voltage of 6000 V AC
- Complies with multiple international certifications including IEC/EN 60947 and UL
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards and proper operation.
Applications
- Industrial control panels
- Electrical switchgear auxiliary contacts
- Automation systems requiring auxiliary contact monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Moeller DILM820-XHI11-SI auxiliary contact module is available for immediate purchase, ideal for industrial and commercial electrical control applications.
