2 Pole Auxiliary Contact Module | 16A Rated Thermal Current | IP20 Protection | Front Mounting by Eaton

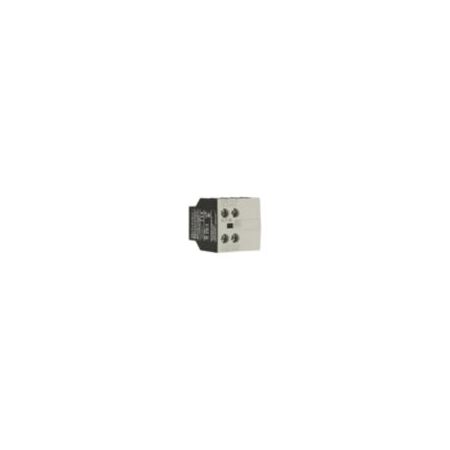

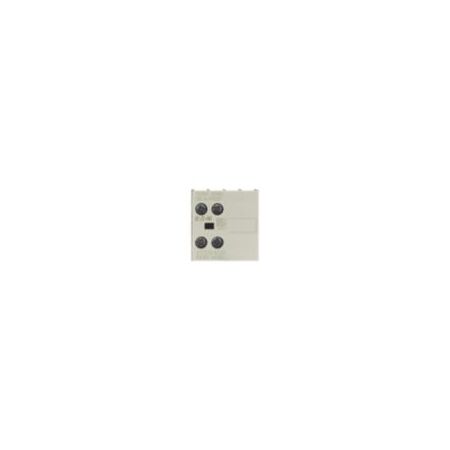

The DILA-XHI20 is a 2 pole auxiliary contact module with 16A rated thermal current and IP20 protection—ideal for industrial control panels and automation systems. Built for reliable performance, it features interlocked opposing contacts and a mechanical lifespan of 10 million operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Pole Auxiliary Contact Module | 16A Rated Thermal Current | IP20 Protection | Front Mounting by Eaton
Brand: Eaton
SKU: Y7-276422
Alternatively Known As: Eaton DILA Auxiliary Contact Module, DILA-XHI20 Auxiliary Contact, 2 Pole Auxiliary Contact Module, Eaton Moeller DILA Accessory
Technical Specifications
- Dimensions (H x L x W): 38mm x 45mm x 36mm
- Weight: 0.039 kg
Key Features
- 2 pole auxiliary contact module with 2 normally open contacts
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Front mounting with screw terminals
- Rated thermal current Ith of 16 A
- IP20 degree of protection
- Shock resistance up to 7 g
- Mechanical lifespan of 10,000,000 operations
- Electrical lifespan of 1,300,000 operations at 230 V AC-15, 3 A
- Operating frequency up to 9000 operations per hour
- Rated insulation voltage of 690 V
- Safe isolation of 400 V AC between coil and auxiliary contacts
- Overvoltage category III and pollution degree 3
- Protection against direct contact from front (EN 50274)
Professional Installation Requirements
- Installation by a qualified electrician or professional panel builder is required to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Industrial control panels
- Automation systems
- Electrical switchgear assemblies
- Standard auxiliary contact applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with standards ensuring safe and efficient electrical operation
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILA-XHI20 Auxiliary Contact Module is available for immediate purchase, ideal for industrial and automation control panel applications.
