2 Pole Changeover Cam Switch | 12A Rated | DIN Rail Mount | IP20 by NHP
Cam switch with 2 pole changeover and off position, rated for 12A operation—ideal for industrial machinery control and commercial equipment switching. Built for durability with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

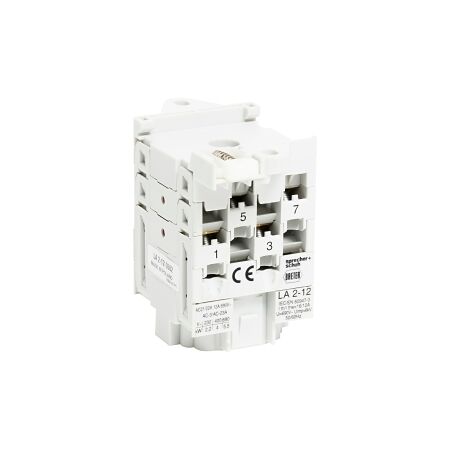

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount
Brand: NHP
SKU: LA2123502
Alternatively Known As: Cam Switch, Changeover Switch, 2 Pole Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 2.2 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22A 690 V: 12 A
- Rated operation current at AC 22A 220-500 V: 12 A
- Rated operation current at AC 21A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection of main circuit: Screw connection
- Material housing: Plastic
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 59mm x 68mm x 68mm
- Weight: 0.5 kg
Key Features
- 2 pole changeover switch with off position.
- Rated for 12A operation.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and power distribution
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
