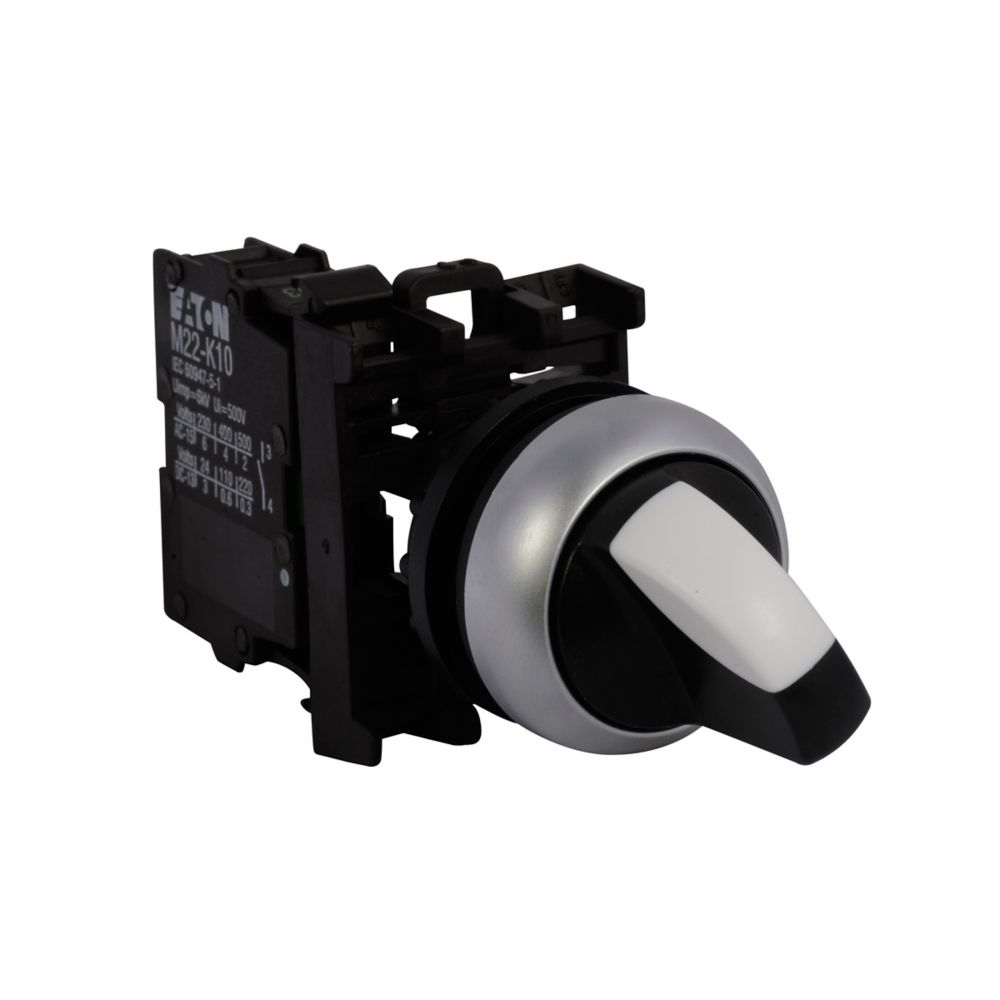

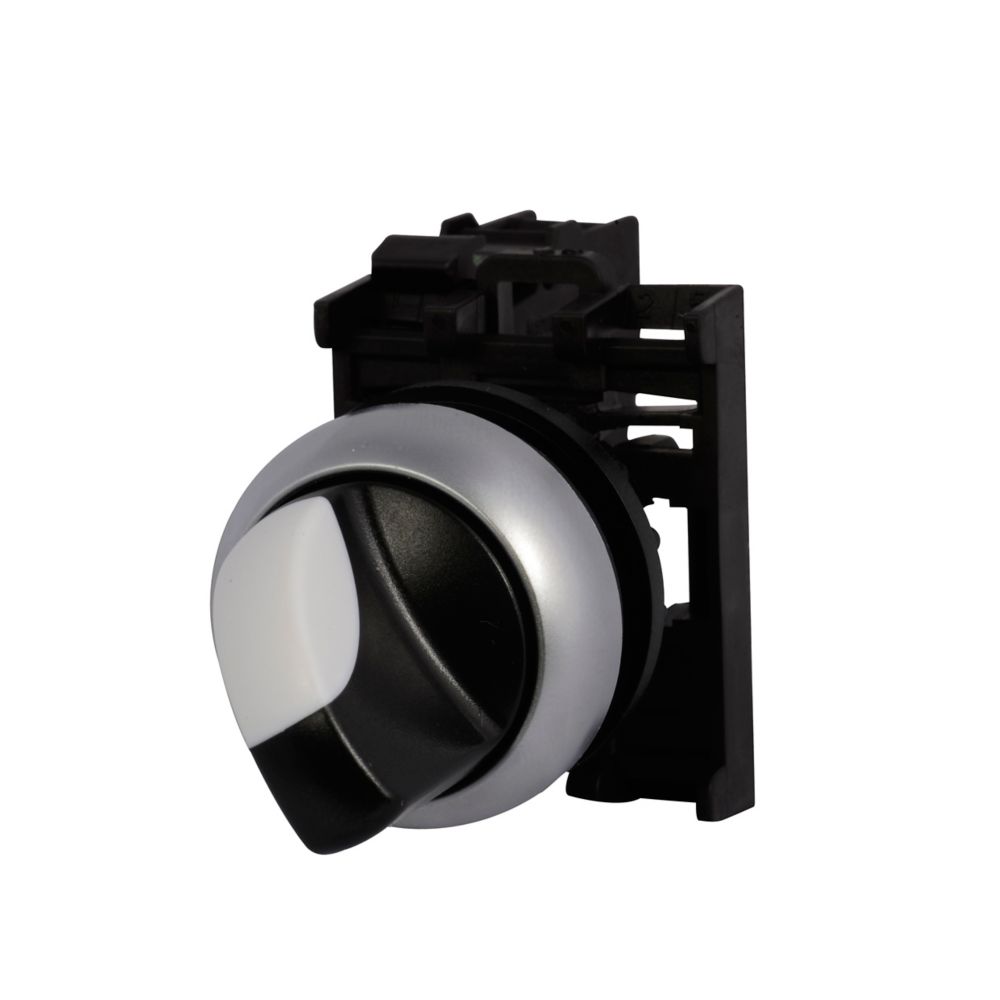

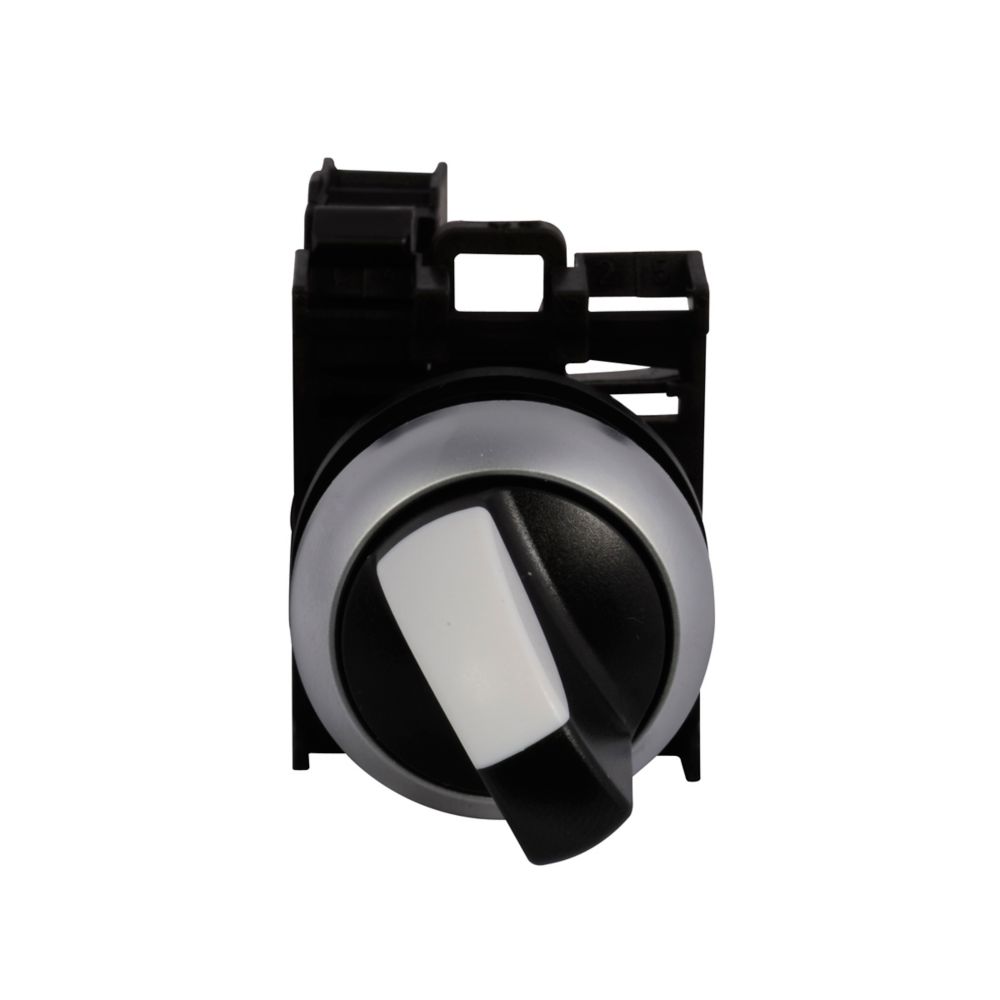

2-Position Momentary Selector Switch | 1NO/1NC Contact | IP67 & IP69K Rated | by Eaton
The 2-position momentary selector switch features a 1NO/1NC contact configuration, making it ideal for industrial control panels and automation systems. With a durable black knob actuator and a silver bezel, it offers both functionality and aesthetics. Rated IP67 and IP69K for dust and water resistance, this switch is built to withstand harsh environments, ensuring reliable operation in machinery and electrical switchgear applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-Position Momentary Selector Switch | 1NO/1NC Contact | IP67 & IP69K Rated | by Eaton
Brand: Eaton
SKU: M22-WKV-K11-P
Alternatively Known As: Eaton M22 Selector Switch, M22 2-Position Switch, Momentary Selector Switch 1NO 1NC, Industrial Selector Switch
Technical Specifications
- Actuator Type: Knob
- Contact Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
- Operating Mode: Maintained
- Size: 22.5 mm
- Bezel Color: Silver
- Actuator Color: Black
- Environmental Rating: IP67, IP69K
- NEMA Rating: 4X, 13
- Non-illuminated
- Dimensions (H x L x W): 25mm x 125mm x 100mm
- Weight: 0.1 kg
Key Features
- Two-position maintained selector switch
- Contact configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
- Non-illuminated knob actuator in black
- Silver bezel for enhanced durability and aesthetics
- Environmental protection ratings IP67 and IP69K for dust and water resistance
- NEMA 4X and 13 rated for protection against corrosion and dust
- Compact 22.5 mm size suitable for modular panel mounting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper environmental sealing.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems
- Electrical switchgear
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High IP67 and IP69K ratings ensure long product life reducing waste
- NEMA 4X and 13 ratings protect against environmental damage, minimizing replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton M22-WKV-K11-P 2-position momentary selector switch is available for immediate purchase, ideal for industrial and automation control panel applications.
