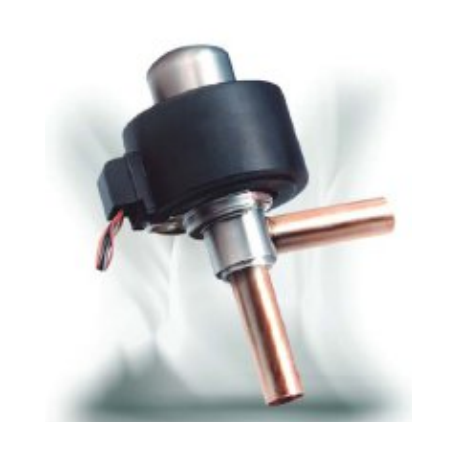

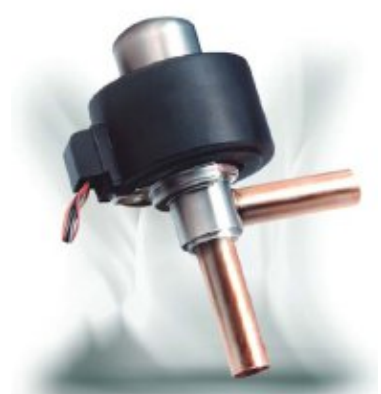

2-series EEV Valve | 1.3 Orifice | 4.2kW Capacity | R410A Compatible | by Aspen Pumps
The 2-series EEV valve with a 1.3 mm orifice and 4.2 kW capacity is designed for efficient temperature and superheat control in HVAC and refrigeration systems. Ideal for both commercial and residential applications, this valve supports multiple refrigerants including R410A and R290, ensuring optimal performance and energy efficiency. With single and bi-directional control, it’s perfect for enhancing system diagnostics and reducing emissions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-series EEV Valve | 1.3 Orifice | 4.2kW Capacity | R410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 702-013
Alternatively Known As: Electronic Expansion Valve, EEV Valve 1.3 Orifice, HVAC Expansion Valve, Refrigeration Expansion Valve
Technical Specifications
- Orifice Size: 1.3 mm
- Capacity: 4.2 kW with R410A refrigerant
- Compatible Refrigerants: R410a, R407c, R404a, R134a, R290
- Control: Single and Bi-Directional
- Input Functions: Compressor, Reverse Valve, Defrost
- Certifications: UL, CSA, PED Compliant ISO/AS 5149.2
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Energy Efficient Expansion and Superheat Control
- Single and Bi-Directional Control for Refrigeration and Heatpump
- Multiple Input Functions including Compressor, Reverse Valve, and Defrost
- Compatible with Multiple Refrigerants: R410a, R407c, R404a, R134a, R290
- Minimum Stable Superheat Function
- Inbuilt Diagnostics for system monitoring
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration specialist is required to ensure proper system integration and compliance with safety standards.
Applications
- HVAC systems for refrigeration and heat pump applications
- Commercial and residential air conditioning units
- Energy-efficient temperature and superheat control in refrigeration systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Improves energy efficiency of HVAC and refrigeration systems, reducing power consumption
- Supports use of environmentally friendly refrigerants like R410A and R290
- Inbuilt diagnostics help optimize system performance and reduce emissions
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen 2-series EEV Valve 1.3 Orifice 4.2kW R410A is available for immediate purchase, ideal for HVAC and refrigeration system upgrades and maintenance.
