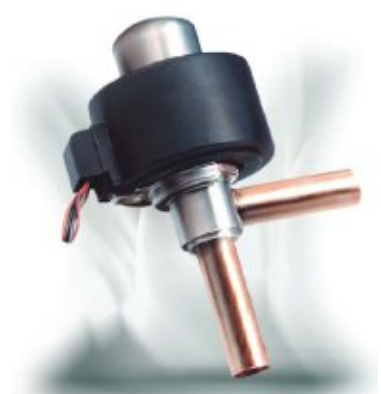

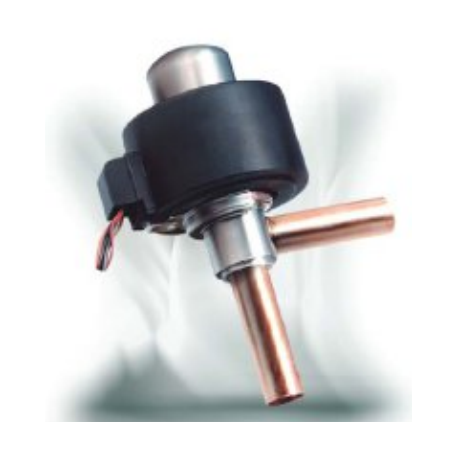

2-series EEV Valve | 1.65mm Orifice | 6.4kW Capacity | R410A Compatible | by Aspen Pumps
The 2-series EEV valve features a 1.65mm orifice and a 6.4kW capacity, making it ideal for refrigeration and heat pump systems. Designed for energy-efficient expansion and superheat control, this valve supports multiple refrigerants including R410A, R407C, and R404A. With inbuilt diagnostics and compliance with safety standards, it's perfect for both commercial and residential HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-series EEV Valve | 1.65mm Orifice | 6.4kW Capacity | R410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 702-016
Alternatively Known As: Electronic Expansion Valve, EEV Valve, Electronic TXV, Refrigeration Expansion Valve
Technical Specifications
- Orifice size: 1.65 mm
- Capacity: 6.4 kW with R410A refrigerant
- Compatible refrigerants: R410a, R407c, R404a, R134a, R290
- Control type: Single and bi-directional
- Input functions: Compressor, reversing valve, defrost
- Certifications: UL, CSA, PED compliant, ISO/AS 5149.2
- Dimensions (H x L x W): 50mm x 120mm x 80mm
- Weight: 0.3 kg
Key Features
- Energy efficient expansion and superheat control
- Single and bi-directional control suitable for refrigeration and heat pump applications
- Multiple input functions including compressor, reversing valve, and defrost
- Compatible with multiple refrigerants: R410a, R407c, R404a, R134a, R290
- Minimum stable superheat function for optimized performance
- Inbuilt diagnostics for system monitoring
Professional Installation Requirements
- Installation by a qualified HVAC technician is required to ensure proper system integration and compliance with safety standards.
Applications
- Refrigeration systems
- Heat pump systems
- Air conditioning units
- Commercial and residential HVAC systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Improves energy efficiency of HVAC and refrigeration systems, reducing power consumption
- Supports use of environmentally friendly refrigerants
- Inbuilt diagnostics help maintain optimal system performance, reducing waste and emissions
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen 2-series EEV valve 1.65 orifice 6.4kW R410A is available for immediate purchase, ideal for refrigeration and heat pump system applications.
