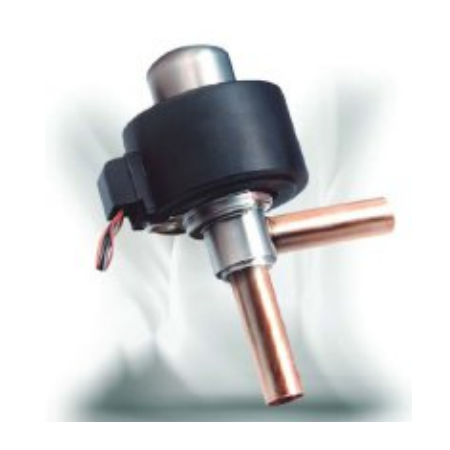

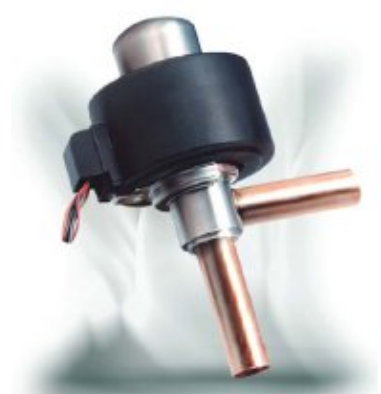

2-series EEV Valve 3.2 Orifice | 33.6kW Capacity | Compatible with R410A & More | by Aspen Pumps
The 2-series EEV valve with a 3.2 mm orifice and 33.6 kW capacity is designed for precise refrigerant flow control in HVAC and refrigeration systems. Ideal for commercial and industrial applications, it supports multiple refrigerants including R410A, R407C, and R404A. With energy-efficient expansion and inbuilt diagnostics, this valve ensures optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-series EEV Valve 3.2 Orifice | 33.6kW Capacity | Compatible with R410A & More | by Aspen Pumps
Brand: Aspen Pumps
SKU: 702-032
Alternatively Known As: Electronic Expansion Valve, EEV Valve 3.2 Orifice, Refrigeration Expansion Valve, HVAC Expansion Valve
Technical Specifications
- Orifice size: 3.2 mm
- Capacity: 33.6 kW with R410A refrigerant
- Compatible refrigerants: R410a, R407c, R404a, R134a, R290
- Control type: Single and bi-directional
- Input functions: Compressor, reverse valve, defrost
- Certifications: UL, CSA, PED compliant, ISO/AS 5149.2
- Dimensions (H x L x W): 50mm x 120mm x 80mm
- Weight: 0.5 kg
Key Features
- Energy efficient expansion and superheat control
- Single and bi-directional control suitable for refrigeration and heat pump systems
- Multiple input functions including compressor, reverse valve, and defrost
- Compatible with multiple refrigerants: R410a, R407c, R404a, R134a, R290
- Minimum stable superheat function for optimized performance
- Inbuilt diagnostics for system monitoring
- Certified UL, CSA, PED compliant and ISO/AS 5149.2 certified
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration specialist is recommended to ensure proper system integration and compliance with safety standards.
Applications
- HVAC systems requiring precise refrigerant flow control
- Refrigeration and heat pump systems using R410a, R407c, R404a, R134a, R290 refrigerants
- Commercial and industrial refrigeration applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Improves energy efficiency of refrigeration and HVAC systems, reducing power consumption
- Supports use of environmentally friendly refrigerants
- Inbuilt diagnostics help maintain optimal system performance, reducing waste and emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen 2-series EEV Valve 3.2 Orifice 33.6kW R410A is available for immediate purchase, ideal for HVAC and refrigeration system upgrades or replacements.
