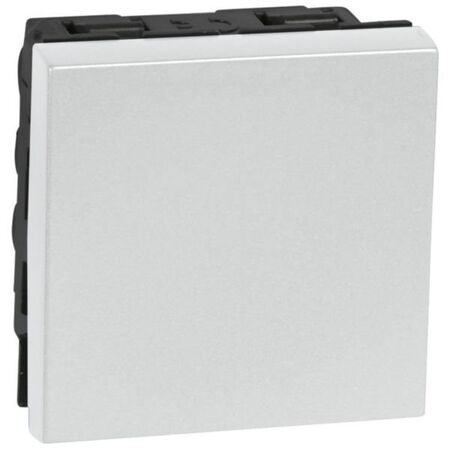

2-Way Double Pole Switch 20 AX 250 V | Modular Design | Soft Aluminium Finish | @EA of 1 | by Legrand
The 2-way double pole switch 20 AX 250 V is perfect for residential and commercial electrical wiring, featuring a modular design with two modules and a stylish soft aluminium finish. With an IP40 rating for protection against solid objects and a robust thermoplastic construction, this switch ensures safe disconnection and reliable operation for lighting and appliance control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-Way Double Pole Switch 20 AX 250 V | Modular Design | Soft Aluminium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572192
Alternatively Known As: Double Pole Light Switch, 2-Way Switch, 20 Amp Switch, Modular Electrical Switch, Legrand Arteor Switch
Technical Specifications
- Rated current: 20 A
- Rated voltage: 250 V AC
- Switching current for fluorescent lamps: 20 AX
- Number of modules: 2
- Mounting method: Modular device with snap fastening
- Material: Thermoplastic, halogen free
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section compatibility: 6-6 mm²
- Connection type: Screwed terminal
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 20 AX rated double pole switch for safe disconnection
- Two-way switching capability
- Modular design with 2 modules
- Rocker/button operation
- Thermoplastic material, halogen free
- Matt soft aluminium finish
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Screwed terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential electrical wiring for lighting and appliance control
- Commercial building electrical installations
- Suitable for domestic switching devices requiring 2-way control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces power loss
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way double pole switch 20 AX 250 V in Soft Aluminium finish is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
