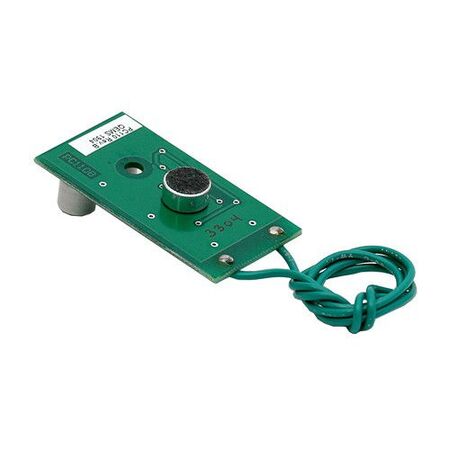

2 Way Listen-In Microphone 3 Zones 12V DC Ness
Ness listen-in microphone features 2 way audio, 3 zones and 12V DC operation. Ideal for alarm audio verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness M1TWI Listen-In Interface, Two-Way Audio Verification Interface, Alarm Listen-In Module
Technical Specifications
- Product Type: Two-way listen-in microphone interface
- Compatibility: Ness M1 control panels
- Microphone Zones: 3 separate zones
- Microphone Capacity: Up to 4 microphones per zone, 12 microphones total
- Operating Voltage: 12 V DC
- Interface Board Current Draw: 10 mA
- Microphone Current Draw: 5 mA per microphone
- Required Microphones: ELK-M1TWM or ELK-M1TWS compatible microphones
- Dimensions (H x L x W): 28.5mm x 111mm x 76mm
- Weight: 0.15 kg
Key Features
- Provides two-way audio for alarm verification and listen-in functions
- Supports three separately selectable microphone zones
- Accommodates up to four microphones per zone
- Interfaces and powers connected listen-in microphones
- Programming and operation are managed through the M1 control panel
- Suitable for central-station alarm verification and remote welfare checks
Professional Installation Requirements
- Installation and connection should be performed by a trained security or alarm technician in accordance with the Ness M1 installation instructions and applicable local requirements. Audio monitoring must comply with applicable privacy and surveillance laws.
Applications
- Intruder alarm audio verification
- Central-station listen-in after alarm activation
- Remote welfare checks for elderly people or children
- Ness M1 control panel installations requiring multi-zone microphone monitoring
Environmental Benefits
- Low-voltage 12 V DC operation supports efficient power use
- Reusable interface module can extend the service life of compatible alarm installations and reduce replacement waste
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms.
Available Now
Available through Ness and authorised Australian security distributors.
