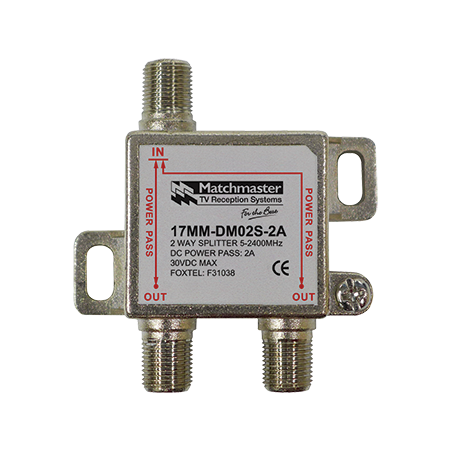

2 Way Splitter for Foxtel SMS | Max 30V 2A | Power Pass All Ports by Matchmaster
2 way splitter with max 30V input and 2A current—ideal for Foxtel SMS systems. Built for seamless connectivity, with power pass capability on all ports.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Way Splitter for Foxtel SMS Systems Max 30V 2A Power Pass All Ports
Brand: Matchmaster
SKU: 17MM-DM02S-2A
Alternatively Known As: Foxtel 2 Way RF Splitter, Power Pass Splitter, Satellite Signal Splitter
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion Loss: 4.5 to 6.5dB depending on frequency band
- Return Loss: ≥10dB across all frequency bands
- Isolation: ≥23dB from 5MHz to 2400MHz
- DC Power Passing: Max 2A at 30V DC bidirectional on all ports
- Dimensions (H x L x W): 20mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Foxtel approved (F31038)
- High isolation splitter for Foxtel SMS systems
- Max 2A 30V DC pass all ports bidirectional
- Return loss ≥10dB across frequency range
- Frequency range 5-2400MHz
- Insertion loss 3.6dB to 5.8dB from 45-2400MHz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper signal distribution and compliance with electrical standards.
Applications
- Foxtel SMS systems
- Terrestrial and Satellite frequency distribution
- Residential and commercial TV and satellite installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for multiple signal sources by efficiently splitting signals
- Durable design reduces electronic waste through long product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 2 Way Splitter for Foxtel SMS Systems is available now for immediate purchase. Ideal for residential and commercial satellite and terrestrial TV installations.
