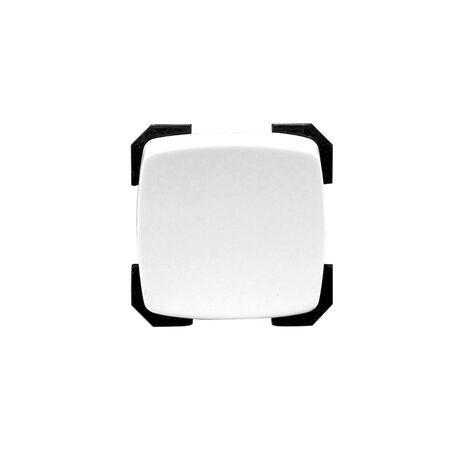

2-Way Switch 250VAC 10A | Prestige P2000 Series | Flush Mounted
2-way switch with 250VAC and 10A capacity—ideal for residential and commercial applications. Built for reliability, with flush mounting and 5 terminals for versatile wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-Way Switch 250VAC 10A | Prestige P2000 Series | Flush Mounted
SKU: P30M-WE
Alternatively Known As: 2-Way Light Switch, Double Way Switch, 10 Amp Switch, Flush Mount Switch, Clipsal P30M Switch
Technical Specifications
- Voltage Rating: 250 VAC
- Current Rating: 10 A
- Number of Terminals: 5
- Cable Accommodation: 4 x 1.5 sq mm for terminals, 4 x 2.5 sq mm for earth and looping terminals
- Motor Rating: M40
- Mounting Method: Flush mounted
- Fastening Type: Clip-on
- Wiring System: 1-pole switch
- Operation Method: Button
- Assembly Arrangement: Basic element
- Illumination: Without illumination
- Number of Poles: 1
- Legend: Without imprint
- Dimensions (H x L x W): 35mm x 28mm x 35mm
- Weight: 0.1 kg
Key Features
- 5 terminals for versatile wiring
- Terminals accommodate 4 x 1.5 sq mm cable
- Earth and looping terminals accommodate 4 x 2.5 sq mm cable
- Motor rating is M40
- Flush mounted with clip-on fastening
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential lighting control
- Commercial lighting control
- General electrical switching applications
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Compatible with energy-efficient lighting systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Prestige P2000 Series 2-Way Switch 250VAC 10A is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
