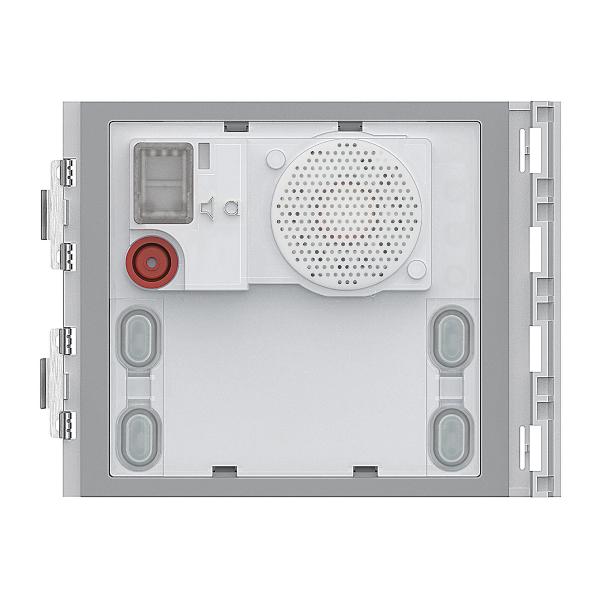

2-Wire Audio Door Entry Module | 100 Calls | IP54 Rated | Allmetal by Legrand
2-wire audio door entry module with support for up to 100 pushbutton calls and IP54 protection—ideal for residential and commercial access control. Built for reliable communication, with adjustable volume and direct door lock control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-Wire Audio Door Entry Module | 100 Calls | IP54 Rated | Allmetal by Legrand
Brand: Legrand
SKU: 351000
Alternatively Known As: 2-Wire Audio Door Entry Module, Bticino Sfera Audio Module, Legrand Door Entry Speaker Module
Technical Specifications
- Supports up to 100 pushbutton calls with additional double row pushbuttons
- Electric door lock control: 18 V 4 A impulsive, 250 mA holding current, 30 Ohm max
- Loudspeaker and microphone volume adjustable
- Standby current: 15mA
- Maximum operating current: 65mA
- Operating temperature: -25 to +70°C
- IP54 protection rating
- Dimensions (H x L x W): 80mm x 40mm x 120mm
- Weight: 0.24 kg
Key Features
- Basic speaker module for 2-wire audio systems
- Manages up to 100 pushbutton calls with additional double row pushbuttons
- Direct electric door lock opening via S+ and S- clamps (18 V 4 A impulsive, 250 mA holding current, 30 Ohm max)
- Connection for local door lock release pushbutton on PL clamps
- Loudspeaker and microphone volume adjustment
- IP54 rated for protection against dust and water splashes
- Standby absorption: 15mA, Max operating absorption: 65mA
- Operating temperature range: -25 to +70°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct configuration and compliance with safety standards.
Applications
- Residential: Apartment and home door entry systems
- Commercial: Office and building access control
- Automation: Integration in 2-wire audio door entry systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 15mA standby absorption reduces energy use
- Durable IP54 rated design extends product lifespan and reduces waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Bticino Sfera New Basic 2-Wire Porter Audio Module Allmetal is available now for immediate purchase. Ideal for residential and commercial door entry systems requiring reliable 2-wire audio communication.
