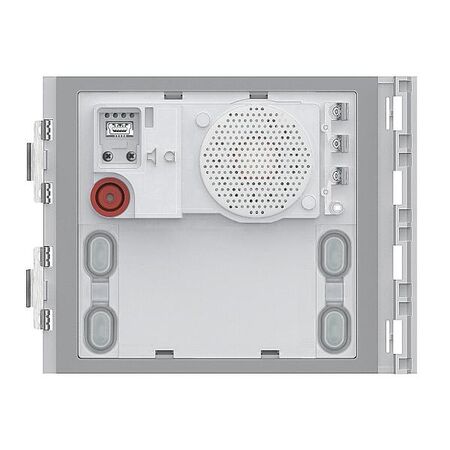

2-Wire Audio Module | Supports 100 Pushbutton Calls | Volume Adjustment & Night Backlighting | @EA of 1 | by Legrand
The 2-Wire Audio Module is designed for seamless integration into audio and video door entry systems, supporting up to 100 pushbutton calls. With adjustable loudspeaker and microphone volume, plus integrated night backlighting, it’s perfect for residential and commercial applications. Ideal for secure entry management, this module ensures reliable communication and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-Wire Audio Module | Supports 100 Pushbutton Calls | Volume Adjustment & Night Backlighting | @EA of 1 | by Legrand
Brand: Legrand
SKU: 351100
Alternatively Known As: 2-Wire Audio Door Entry Module, Bticino Audio Module, Legrand Door Entry Speaker Module
Technical Specifications
- Supports up to 100 pushbutton calls with additional modules
- Electric door lock control: 18 V 4 A impulsive, 250 mA holding current, max 30 Ohm
- Volume adjustment for loudspeaker and microphone
- Front LEDs for operational status indication
- Integrated optic sensor for night backlighting
- Configurable via PC software TiSferaDesign or physically
- Compatible with 2-wire audio & video systems
- Dimensions (H x L x W): 147mm x 142mm x 65mm
- Weight: 0.18 kg
Key Features
- Speaker module for 2-wire audio & video systems
- Manages up to 100 pushbutton calls with additional double row pushbutton modules
- Loudspeaker and microphone volume adjustment
- Front LEDs indicate door lock release, communication active, call put through, and system busy
- Integrated optic sensor for night backlighting activation
- Configurable physically or via PC using TiSferaDesign software
- Supports direct electric door lock opening with 18 V 4 A impulsive and 250 mA holding current
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with 2-wire audio and video door entry systems to ensure compliance with electrical standards and optimal system performance.
Applications
- Residential: Apartment and house door entry systems
- Commercial: Office buildings, apartment complexes, and gated communities
- Security: Audio communication and door release control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces power consumption in door entry systems
- Supports integration with modern digital systems reducing need for multiple wiring and hardware
Warranty Information
1 Year Warranty
Available Now
The Bticino Sfera New Evolved 2-Wire Audio Module All Metal Finish is available for immediate purchase, ideal for residential and commercial door entry and security systems.
