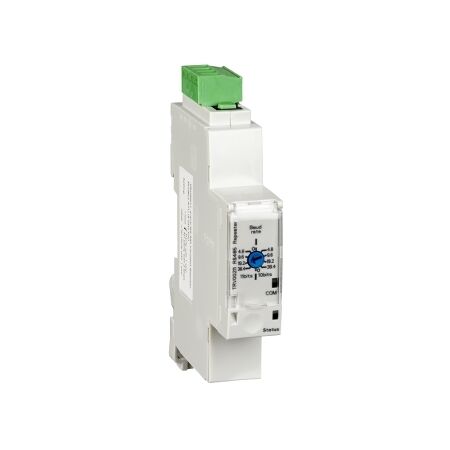

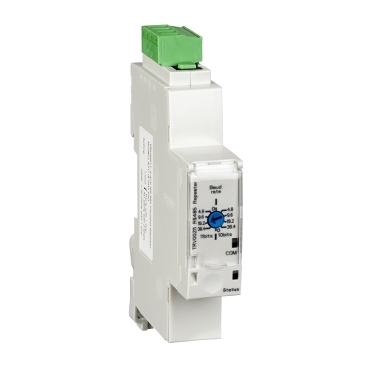

2-WIRE RS-485 Insulated Repeater | Galvanic Isolation | DIN Rail Mountable | by Clipsal
The 2-WIRE RS-485 Insulated Repeater is designed to extend and isolate RS-485 communication networks, making it ideal for industrial automation and building management systems. With galvanic isolation between segments and compatibility with Enerlin'X systems, this compact repeater ensures reliable signal regeneration for long cable runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-WIRE RS-485 Insulated Repeater | Galvanic Isolation | DIN Rail Mountable | by Clipsal
Brand: Clipsal
SKU: SCHTRV00211
Alternatively Known As: RS-485 Repeater, RS485 Isolated Repeater, RS-485 Signal Booster, Enerlin'X Repeater Module, Clipsal RS-485 Insulated Repeater
Technical Specifications
- Communication Standard: RS-485 (2-wire)
- Insulation: Galvanic isolation between input and output
- Power Supply: 24V DC (typical)
- Mounting: DIN rail
- Operating Temperature: -10°C to +55°C
- Compatible with Enerlin'X system
- Repeats and regenerates RS-485 signals
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Provides galvanic insulation between two RS-485 segments
- Supports 2-wire RS-485 communication
- Repeats and regenerates RS-485 signals for extended cable runs
- Enerlin'X compatible for seamless integration
- Compact DIN rail mountable design
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure correct wiring and compliance with safety standards.
Applications
- Industrial automation systems
- Building management systems
- Commercial and residential automation networks
- RS-485 communication extension in large installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances network reliability, reducing electronic waste from failed devices
- Supports energy-efficient building automation systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 2-WIRE RS-485 Insulated Repeater Module SCHTRV00211 is available for immediate purchase. Ideal for extending and isolating RS-485 communication networks in industrial and building automation applications.
