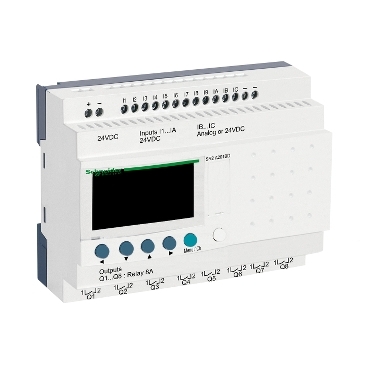

20 I/O Relay Module 24VDC | Integrated LCD Display | DIN Rail Mountable | @Pack of 1 | by Clipsal
The 20 I/O Relay Module 24VDC is designed for flexible automation in industrial settings, featuring 20 configurable I/O points and an integrated LCD for real-time status monitoring. Ideal for building management systems and process control, this compact DIN rail mountable relay module ensures efficient operation without an integrated clock, making it perfect for simplified applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20 I/O Relay Module 24VDC | Integrated LCD Display | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSR2A201BD
Alternatively Known As: Clipsal SR2A201BD, Schneider SR2A201BD, Zelio Logic Smart Relay 20 I/O 24VDC, Smart Relay Module 20 I/O
Technical Specifications
- Input/Output: 20 configurable I/O points
- Operating Voltage: 24VDC
- Display: Integrated LCD for status and diagnostics
- Mounting: DIN rail
- Relay Outputs: 8 relay outputs
- Digital Inputs: 12 digital inputs
- Operating Temperature: -20°C to +55°C
- IP Rating: IP20
- Dimensions (H x L x W): 100mm x 60mm x 90mm
- Weight: 0.45 kg
Key Features
- 20 input/output relay module for flexible automation
- 24VDC operation for industrial compatibility
- Integrated display for status monitoring
- Compact DIN rail mountable design
- No integrated clock for simplified applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified automation technician to ensure compliance with electrical safety standards.
Applications
- Industrial automation control panels
- Building management systems
- Process control systems
- Remote I/O expansion for PLCs
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient automation, reducing energy waste in industrial and building applications.
- Long operational life reduces electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SR 20 I/O Relay 24VDC Display Without Clock (SCHSR2A201BD) is available for immediate purchase. Ideal for industrial automation, building management, and process control applications.
