Trade Discount 17%

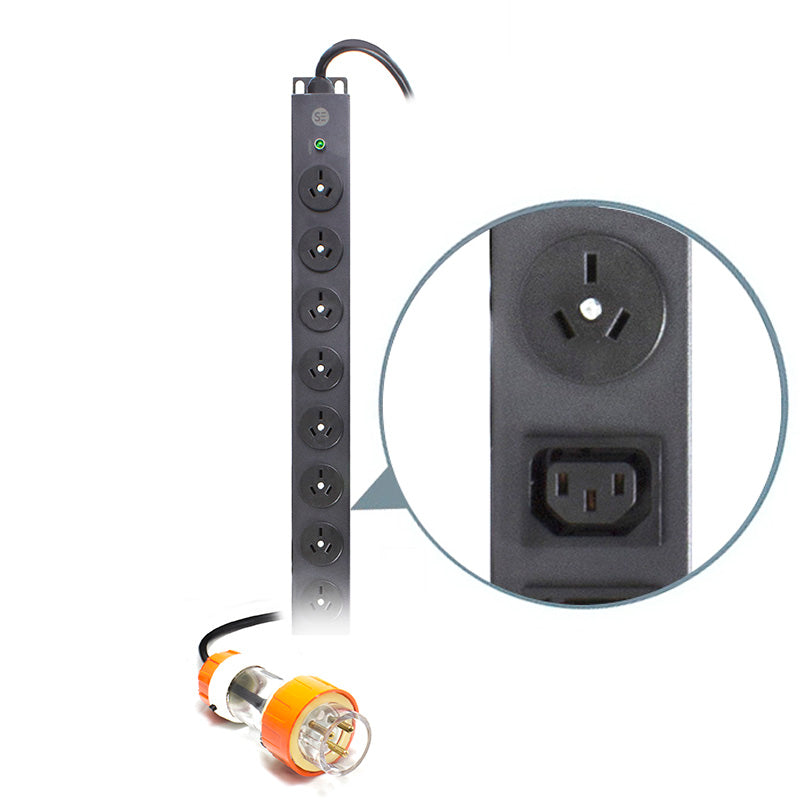

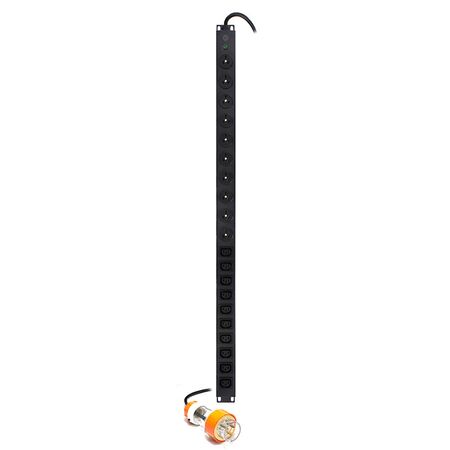

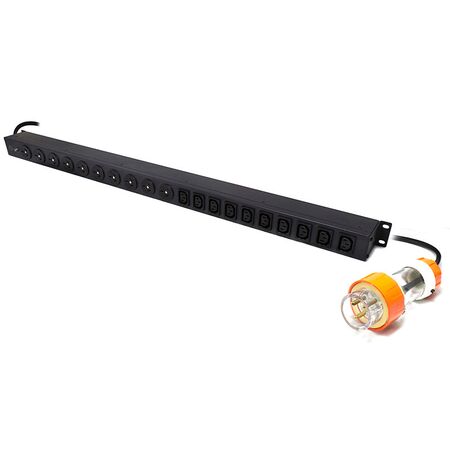

20 Port Vertical PDU | 10 AUS GPO & 10 IEC C13 Outputs | 20A, 240V | by SERVEREDGE
The 20 Port Vertical PDU is designed for efficient power distribution in data centers and server rooms, featuring 10 Australian GPO outputs and 10 IEC C13 sockets. With a single 20A captive plug input and rated for 240V operation, this PDU is perfect for IT infrastructure setups, ensuring reliable power management and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20 Port Vertical PDU | 10 AUS GPO & 10 IEC C13 Outputs | 20A, 240V | by SERVEREDGE
Brand: SERVEREDGE
SKU: SEDG-20P-GPOC13-20A
Alternatively Known As: 20 Port Vertical PDU, Server Power Distribution Unit, Rack Mount PDU, 20A PDU with AUS GPO and IEC C13
Technical Specifications
- Input: 1 x 3-pin Australian 20A captive plug
- Output: 10 x 3-pin Australian GPO, 10 x IEC C13 sockets
- Voltage: 240V AC
- Current Rating: 20A
- Mounting: Vertical rack mount
- Dimensions (H x L x W): 800mm x 100mm x 60mm
- Weight: 3.5 kg
Key Features
- 20 port vertical Power Distribution Unit (PDU)
- 10 Australian 3-pin GPO outputs
- 10 IEC C13 outputs
- Single 3-pin Australian 20A captive plug input
- Rated for 20A, 240V operation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Data centers and server rooms
- Network cabinets and racks
- IT infrastructure power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Helps optimize power usage in data centers reducing energy waste
- Supports efficient power management to lower carbon footprint
Warranty Information
Standard 1 year warranty covering manufacturing defects.
Available Now
The Serveredge Basic Vertical 20 Port PDU is available for immediate purchase, ideal for data centers, server rooms, and network infrastructure requiring reliable power distribution.
