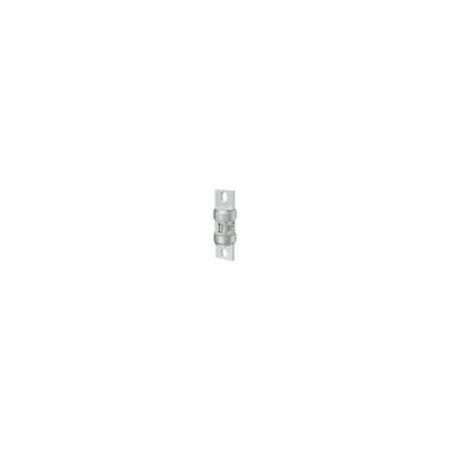

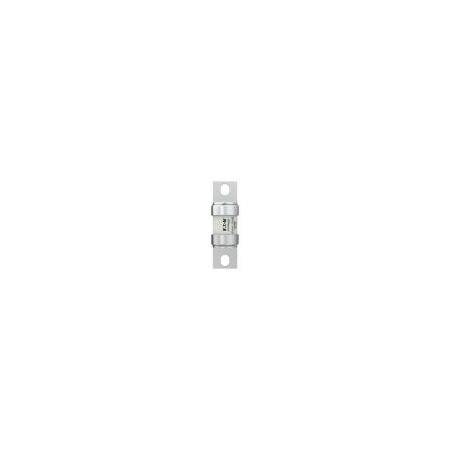

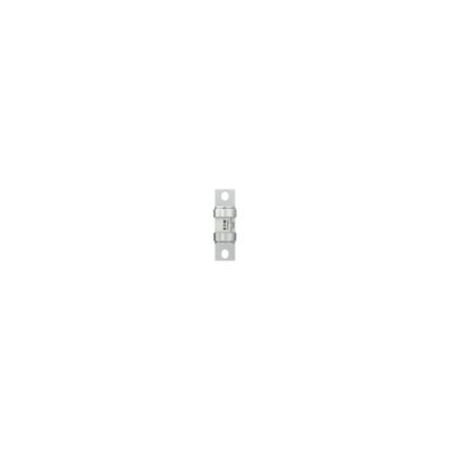

200A 500V AC Tag Fuse | High Speed | Blade End Connection | Ceramic by Eaton
200A 500V AC tag fuse with high speed interruption and blade end connection—ideal for semiconductor protection. Built for industrial and commercial applications, with durable ceramic construction and non-indicating design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200A 500V AC Tag Fuse | High Speed | Blade End Connection | Ceramic by Eaton
Brand: Eaton
SKU: FWH-200B
Alternatively Known As: 200 Amp High Speed Fuse, 500V AC Tag Fuse, FWH-200B Fuse, Eaton Bussmann FWH Fuse
Technical Specifications
- Amperage Rating: 200 A
- Voltage Rating: 500 Vac, 500 Vdc
- Breaking Capacity: 200 kA at 300 Vdc, 50 kA at 300 Vdc
- Fuse Type: High speed fuse, Class aR
- Connection: Blade end x blade end
- Mounting Method: Stud
- Material: Ceramic
- Fuse Shape: Center bolted tags
- Watt Losses: 40 W
- Rated Switching Capacity: 200 kA
- Fuse Indicator: Non Indicating
- Mounting Dimension: M8
- Center-to-center Distance of Connections: 74.09 mm
- Dimensions (H x L x W): 30mm x 91mm x 30mm
- Weight: 0.152 kg
Key Features
- High speed fuse for rapid interruption
- Blade end x blade end connection
- Class aR utilization category for semiconductor protection
- Stud mounting method
- Ceramic construction for durability
- Non-indicating fuse
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 200A 500V AC Tag Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
