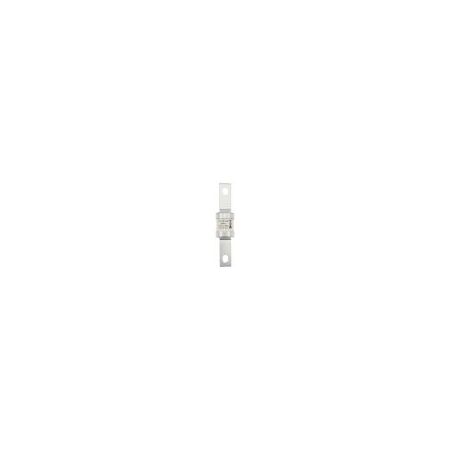

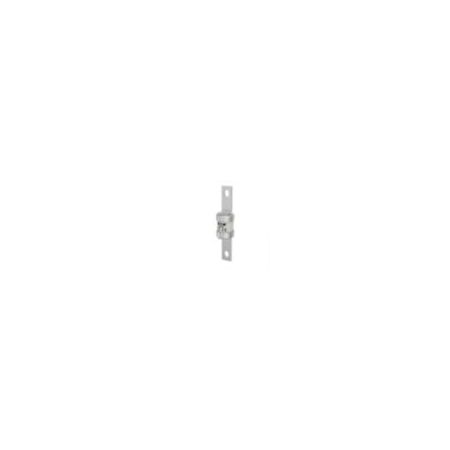

200A AC Industrial Fuse | 415V Voltage | 80kA Breaking Capacity | gG/gL Class by Eaton
200A AC industrial fuse with a 415V voltage rating and 80kA breaking capacity—ideal for low voltage protection in industrial electrical systems. Built for heavy-duty applications, with secure centre bolted tags for reliable fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200A AC Industrial Fuse | 415V Voltage | 80kA Breaking Capacity | gG/gL Class by Eaton
Brand: Eaton
SKU: DD200
Alternatively Known As: 200 Amp Industrial Fuse, 415V AC Fuse, BS88 Fuse, Low Voltage Industrial Fuse
Technical Specifications
- Amperage Rating: 200 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 80 kA
- Class: gG/gL
- Fuse Type: DD
- Construction: BS88/B2
- Fitted with: Centre bolted tags
- Suitable for: RS200 Red spot fuse holder
- Dimensions (H x L x W): 31mm x 136mm x 31mm
- Weight: 0.1514 kg
Key Features
- 200A amperage rating suitable for heavy-duty industrial applications
- 415V AC voltage rating
- High breaking capacity of 80 kA for enhanced safety
- Class gG/gL fuse type for general purpose protection
- Centre bolted tags for secure fitting
- Complies with BS88 IEC 60269 and EAC standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Industrial electrical systems requiring low voltage fuse protection
- Electrical panels and switchboards
- Protection of electrical circuits in commercial and industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Bussmann Series 200A 415V AC Industrial Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
