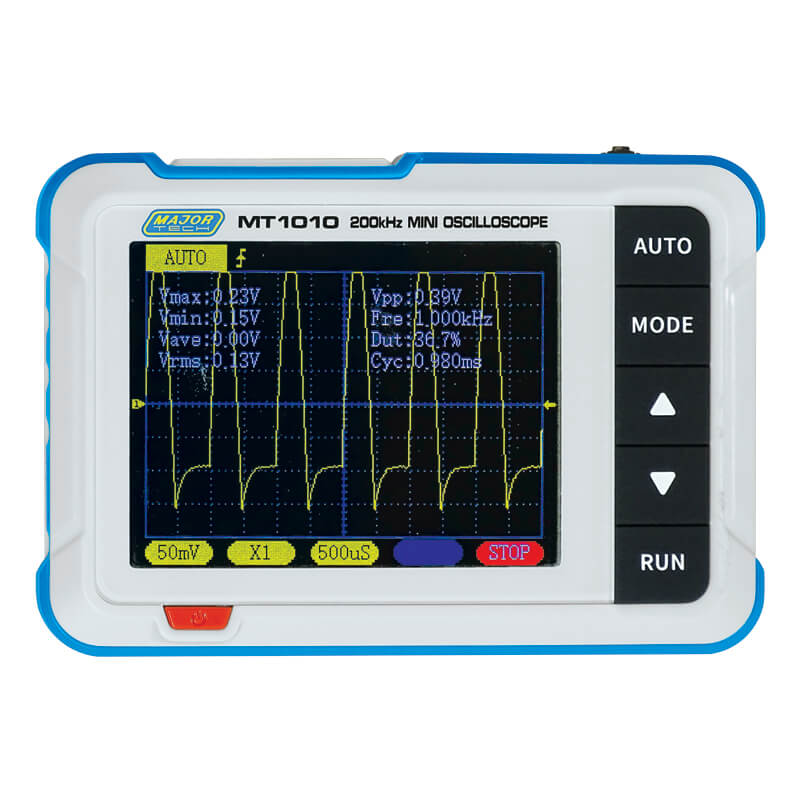

200kHz Mini Oscilloscope | 2.8-Inch LCD | 1000mAh Battery | Real-Time Sampling by Majortech

BRAND: Major Tech

SKU: MT1010

$123.20 List price: $158.50

+ −

30 Days Return Delivery Options

The 200kHz Mini Oscilloscope features a 2.8-inch LCD and a 1000mAh rechargeable battery—ideal for maintenance and educational applications. Built for portability and ease of use, it offers real-time sampling and comprehensive trigger functions for accurate waveform analysis.

Description

Product Name/Title: 200kHz Mini Oscilloscope | 2.8-Inch LCD | 1000mAh Battery | Real-Time Sampling by Majortech

Brand: Majortech

SKU: MT1010

Alternatively Known As: Handheld Mini Oscilloscope, Portable Digital Oscilloscope, Compact Signal Analyzer

Technical Specifications

Bandwidth: 200kHz
Vertical Sensitivity: 10mV/Div to 20V/Div (1-2-5 progression)
Time Base Range: 10µs/Div to 50s/Div (1-2-5 progression)
Voltage Range: X1: ±40V (VPP: 80V), X10: ±400V (VPP: 800V) with optional probe
Trigger Methods: Auto, Normal, Single
Coupling Method: AC/DC
Battery Capacity: 1000mAh rechargeable lithium battery
Square Wave Calibration Frequency: 1kHz
Duty Cycle: 50%
Dimensions (H x L x W): 68.3mm x 19.5mm x 99mm
Weight: 0.1 kg

Key Features

200kHz bandwidth suitable for periodic analogue and non-periodic digital signals
Real-time sampling rate of 2.5MS/s
Comprehensive trigger functions: single, normal, and automatic
One-key AUTO function for easy waveform display without complex adjustments
2.8-inch high-definition LCD screen with 320x240 resolution
Built-in 1000mAh rechargeable lithium battery providing approximately 4 hours of continuous operation

Professional Installation Requirements

No professional installation required; user-friendly handheld device suitable for field and lab use.

Applications

Maintenance industry for electrical and electronic equipment troubleshooting
Research and education for signal analysis and waveform visualization
Fieldwork requiring portable and reliable oscilloscope measurements

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Rechargeable lithium battery reduces disposable battery waste
Compact and portable design minimizes material usage and energy consumption during transport

Warranty Information

Standard manufacturer warranty applies, typically 1 year against defects.

Available Now

The Majortech 200kHz Mini Oscilloscope MT1010 is available now for immediate purchase. Ideal for maintenance, research, and educational applications requiring portable signal measurement.
