200mm HD Conduit 1500 Radius 90 Degree Bend | Heavy Duty Construction | Reduces Conduit Stress | by Pipemakers
The 200mm HD Conduit 1500 Radius 90 Degree Bend is designed for heavy-duty electrical conduit installations, featuring a robust construction that ensures durability and reliability. With a large 1500mm radius, it effectively reduces conduit stress, making it ideal for industrial and commercial wiring systems. This bend complies with AS/NZS 3000 standards, ensuring safety and performance in electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200mm HD Conduit 1500 Radius 90 Degree Bend | Heavy Duty Construction | Reduces Conduit Stress | by Pipemakers
Brand: Pipemakers
SKU: 200HDCON1500R90B
Alternatively Known As: Heavy Duty Electrical Sweep Bend 200mm, 90 Degree Conduit Bend, Large Radius Conduit Bend

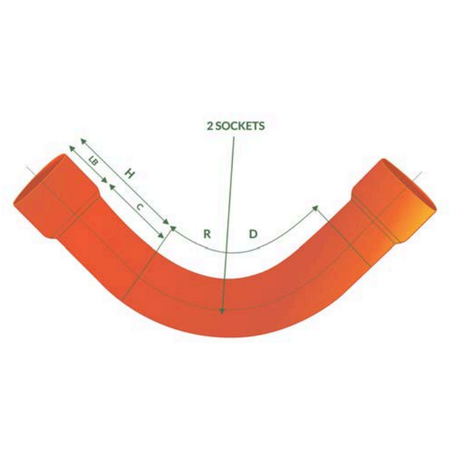

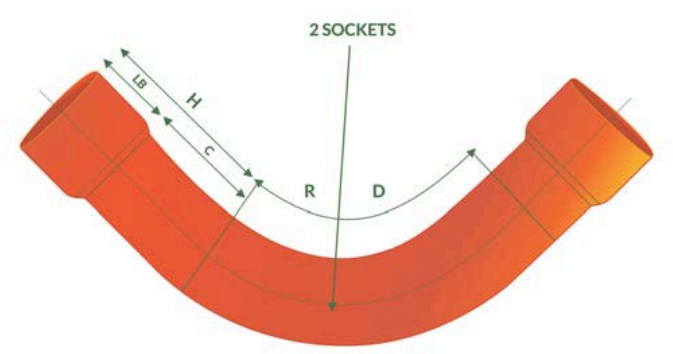

Technical Specifications
- Nominal Size: 200mm
- Radius: 1500mm
- Bend Angle: 90 degrees
- Length (Lb): 147mm
- Dimension D: 3212mm
- Dimension C: 156mm
- Dimensions (H x L x W): 200mm x 3212mm x 200mm
- Weight: 15 kg
Key Features
- Heavy duty construction for durability in electrical conduit systems
- 90 degree bend with a large 1500mm radius to reduce conduit stress
- Nominal size of 200mm suitable for large conduit runs
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced in conduit systems to ensure compliance with electrical standards and safety.
Applications
- Electrical conduit installations requiring heavy duty bends
- Industrial and commercial electrical wiring systems
- Pipe support systems for electrical conduits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical conduit routing which can improve system longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to Pipemakers for specific warranty details.
Available Now
The 200mm HD Conduit 1500 Radius 90 Degree Bend is available for immediate purchase, ideal for heavy duty electrical conduit installations in industrial and commercial settings.
