200mm HD Conduit 6000 Radius 11.25 Degree Bend | Heavy Duty Construction | Large Radius for Cable Protection | by Pipemakers
The 200mm HD Conduit 6000 Radius 11.25 Degree Bend is designed for heavy-duty electrical installations, featuring a durable construction and a large 6000mm radius to minimize stress on cables. Ideal for industrial and commercial applications, this conduit bend ensures precise routing with its 11.25-degree angle, making it perfect for complex electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200mm HD Conduit 6000 Radius 11.25 Degree Bend | Heavy Duty Construction | Large Radius for Cable Protection | by Pipemakers
Brand: Pipemakers
SKU: 200HDCON6000R11B
Alternatively Known As: Heavy Duty Electrical Sweep Bend, 200mm Conduit Bend, Large Radius Conduit Bend, Electrical Pipe Bend

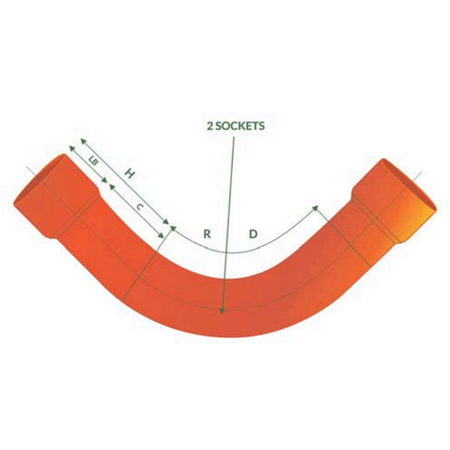

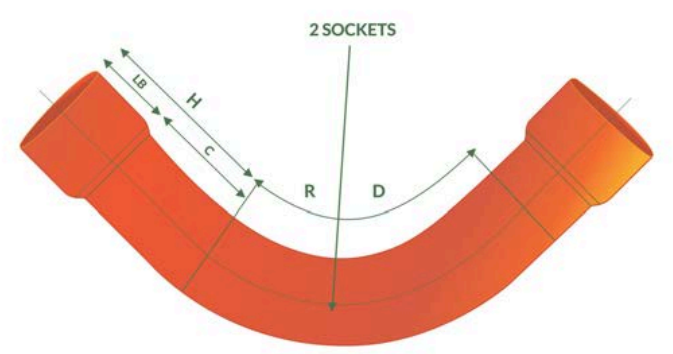

Technical Specifications
- Nominal Size: 200mm
- Radius R: 6000mm
- Bend Angle: 11.25 degrees
- Dimension D: 1667mm
- Dimension C: 156mm
- Dimension Lb: 147mm
- Dimensions (H x L x W): 200mm x 1667mm x 200mm
- Weight: 15 kg
Key Features
- Heavy duty construction for durability and long service life
- 11.25 degree bend angle for precise conduit routing
- Large 6000mm radius to reduce stress on cables
- Nominal size of 200mm suitable for large conduit runs
Professional Installation Requirements
- Installation should be performed by a licensed electrician or qualified professional to ensure compliance with electrical standards and safety.
Applications
- Electrical conduit systems requiring heavy duty bends
- Industrial and commercial electrical installations
- Pipe support systems for electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports safe and efficient electrical installations, reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Pipemakers for details.
Available Now
The 200mm HD Conduit 6000 Radius 11.25 Degree Bend is available for immediate purchase, ideal for heavy duty electrical conduit installations in industrial and commercial settings.
