200mm HD Conduit 90 Degree Bend | Heavy Duty Construction | 1200mm Radius | by Pipemakers
The 200mm HD Conduit 90 Degree Bend is designed for heavy-duty electrical installations, featuring a robust construction and a large 1200mm radius to minimize stress on cables. Ideal for industrial and commercial wiring systems, this conduit bend ensures compliance with AS/NZS 3000 standards, providing durability and reliability in electrical conduit systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200mm HD Conduit 90 Degree Bend | Heavy Duty Construction | 1200mm Radius | by Pipemakers
Brand: Pipemakers
SKU: 200HDCON1200R90B
Alternatively Known As: Heavy Duty Electrical Sweep Bend 200mm, 90 Degree Conduit Bend, Large Radius Electrical Bend

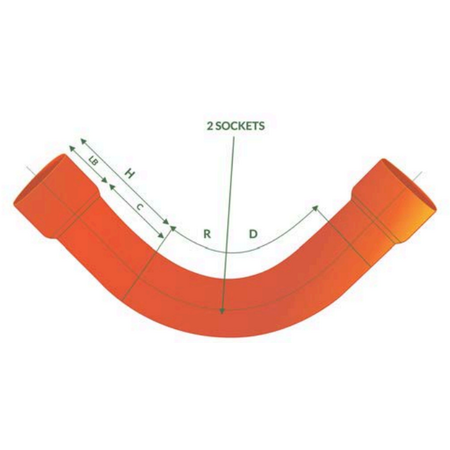

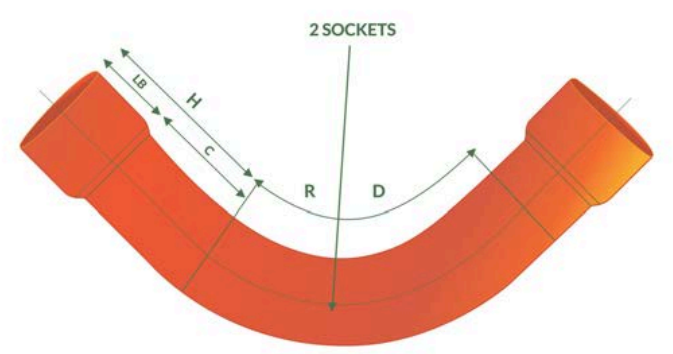

Technical Specifications
- Nominal Size: 200mm
- Radius: 1200mm
- Bend Angle: 90 degrees
- Dimension D: 2231mm
- Dimension C: 156mm
- Dimension Lb: 147mm
- Dimensions (H x L x W): 200mm x 156mm x 2231mm
- Weight: 15 kg
Key Features
- Heavy duty construction for durability in electrical conduit systems
- 90 degree bend with a large 1200mm radius to reduce stress on cables
- Nominal size of 200mm suitable for large conduit runs
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced in conduit systems to ensure compliance with electrical standards.
Applications
- Electrical conduit installations requiring heavy duty bends
- Industrial and commercial electrical wiring systems
- Pipe support systems for electrical conduits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports safe and efficient electrical installations, reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Pipemakers for details.
Available Now
The 200mm HD Conduit 1200 Radius 90 Degree Bend is available for immediate purchase, ideal for heavy duty electrical conduit installations in industrial and commercial settings.
