200mm x 6m Builder Spec Flexible Duct 3 Zero Carton of 10 Ventair

BRAND: Ventair
SKU: VAD200-B
$26.20 List price: $34.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

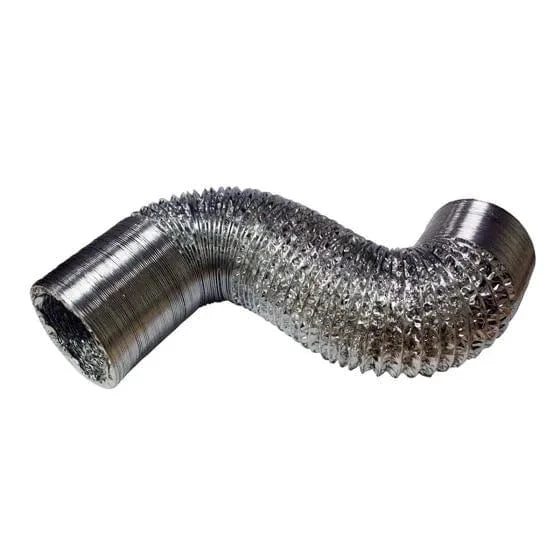

200mm x 6m Builder Spec Flexible Duct 3 Zero (1 Carton of 10 Only Sold in Carton Quantity) by Ventair

Alternatively Known As: Ventair VAD200-B Flexible Duct, 200 mm Flexible Ventilation Duct, Builder Spec 3-Zero Ducting

Technical Specifications
  • Model: VAD200-B
  • Duct Diameter: 200 mm nominal
  • Duct Length: 6000 mm per duct when extended
  • Pack Quantity: 10 ducts per carton
  • Duct Type: Flexible, multi-layered, non-insulated ducting
  • Material: Aluminium-based flexible ducting
  • Fire Rating: 3-Zero rating to AS 4254 requirements
  • Intended Use: General exhaust and supply air ventilation
  • Sale Quantity: Carton of 10 only
  • Dimensions (H x L x W): 200mm x 6000mm x 200mm
  • Weight: 15 kg
Key Features
  • 200 mm diameter suits compatible Ventair ventilation products
  • 6 m extended length per duct
  • Flexible construction allows routing around building obstructions
  • Non-insulated design for general-purpose ventilation applications
  • Suitable for bathrooms, laundries, toilets and similar areas
  • Supplied as one carton containing 10 ducts
  • 3-Zero fire rating for Australian ductwork applications
Professional Installation Requirements
  • Install in accordance with AS 4254.1, applicable building requirements and the connected ventilation appliance manufacturer's instructions. Support, seal and protect the ductwork against crushing, sharp edges and excessive sagging.
Applications
  • Bathroom exhaust ventilation
  • Laundry ventilation
  • Toilet and powder-room ventilation
  • Residential exhaust fan systems
  • General supply-air ventilation
  • Builder and commercial ventilation installations
Standards & Compliance
  • 3-Zero fire rating referenced to AS 4254 requirements
  • Installation applicable to AS 4254.1 flexible ductwork requirements
Environmental Benefits
  • Aluminium-based ducting can be recycled where suitable local recycling facilities accept the material
  • Flexible routing can reduce the need for additional rigid duct fittings and associated material use
  • Supports effective ventilation that helps reduce moisture, mould and indoor air-quality issues
Warranty Information

Warranty details vary by product category; Australian Consumer Law guarantees apply. Confirm the applicable Ventair warranty terms with the authorised seller before purchase.

Available Now

Available through authorised Ventair distributors in Australia.
